Rehabilitation of the Pie-IX railway bridge

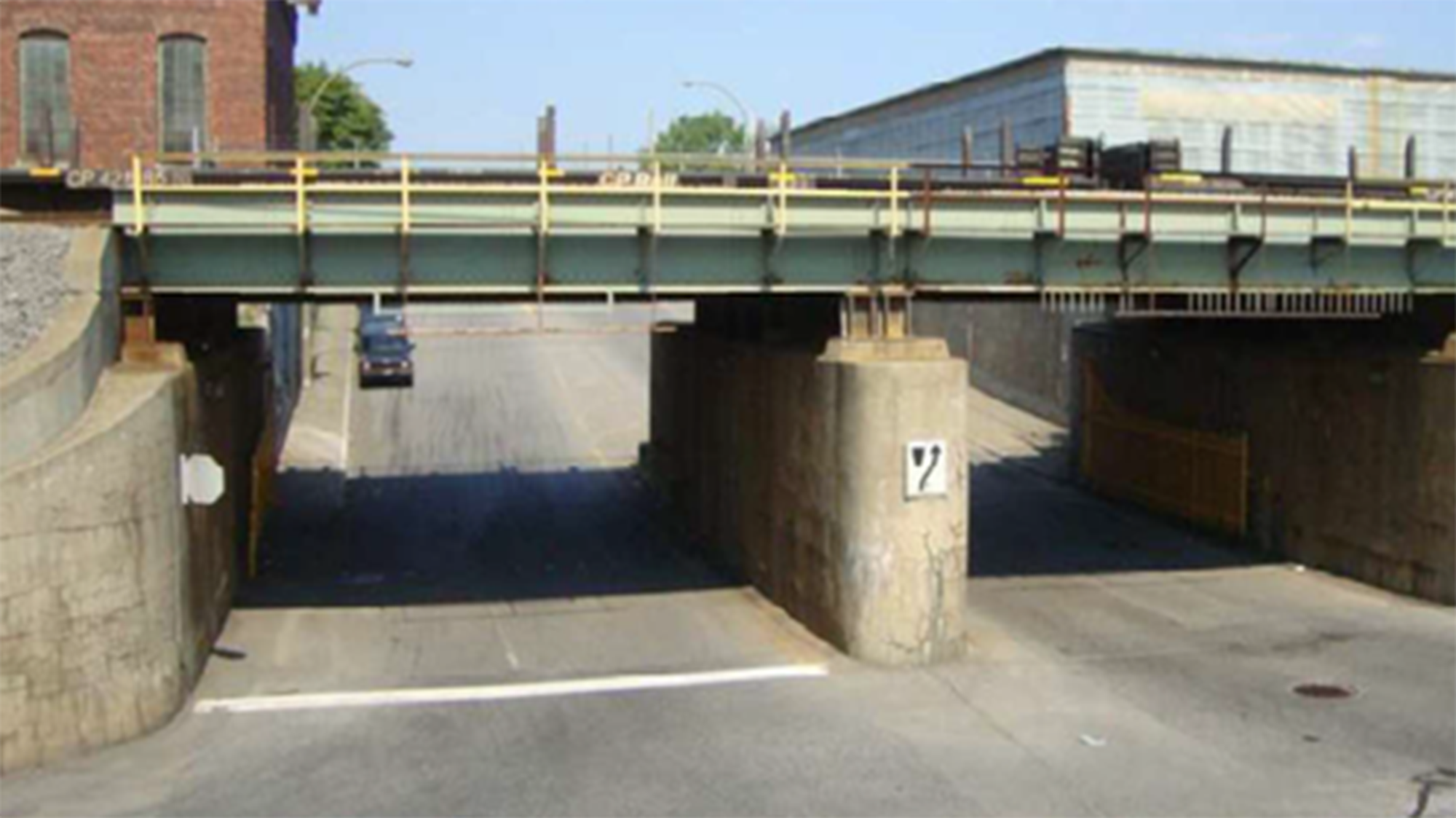

Spanning Pie-IX Blvd. north of the Port Road, the Pie-IX railway bridge is a key infrastructure at the core of the Port of Montreal’s rail network. The aim of the project is to ensure the long-term viability of the rail link, improve supply chain fluidity, increase rail capacity and optimize the flow of goods on the Port’s rail network.
Overview
Currently comprising three rail tracks, the structure is under heavy strain to accommodate growing rail transport needs, and requires major work on its foundations and decks. With a budget of $42.41 million, this project will restore the aging infrastructure, add a fourth rail track to the structure to create a 200-metre-long rail link over the bridge, and build three rail storage lanes for the Lantic sugar refinery northeast of the overpass. These three storage lanes will enable Lantic to increase its sugar-car storage capacity and boost production to meet demand from companies in Quebec and Ontario.
Project objectives
Timeline
July 2023
The public Request for Proposals for construction of the Pie-IX railway bridge was issued.
March 2024
The MPA received $16.75 million in funding from the Government of Canada for the project.
April to June 2024

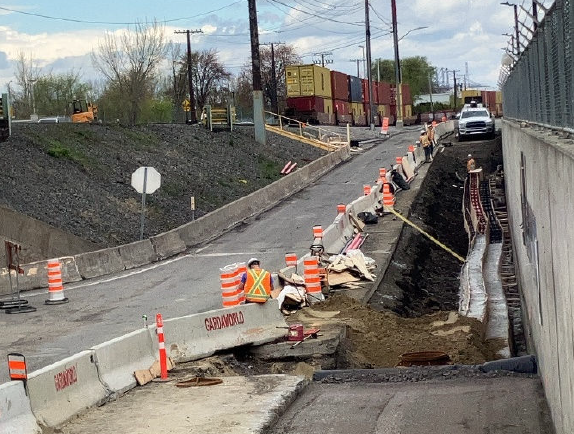

Electrical projects: undergrounding power lines to allow the addition of a fourth track on the railway bridge. This entails replacing the overhead electrical/telecom network for 500 metres.
June to November

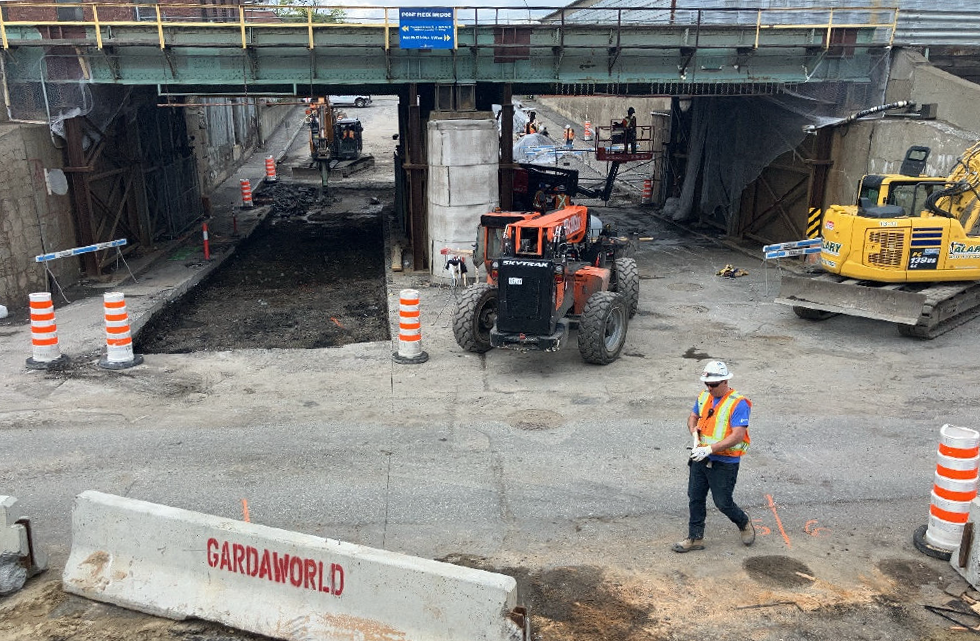

Start of structural project works on the bridge:
- Construction of sheet-pile retaining walls
- Installation of large diameter caisson piles
- Concrete retaining walls
- Reinforcement of existing abutments
- Installation of anchors

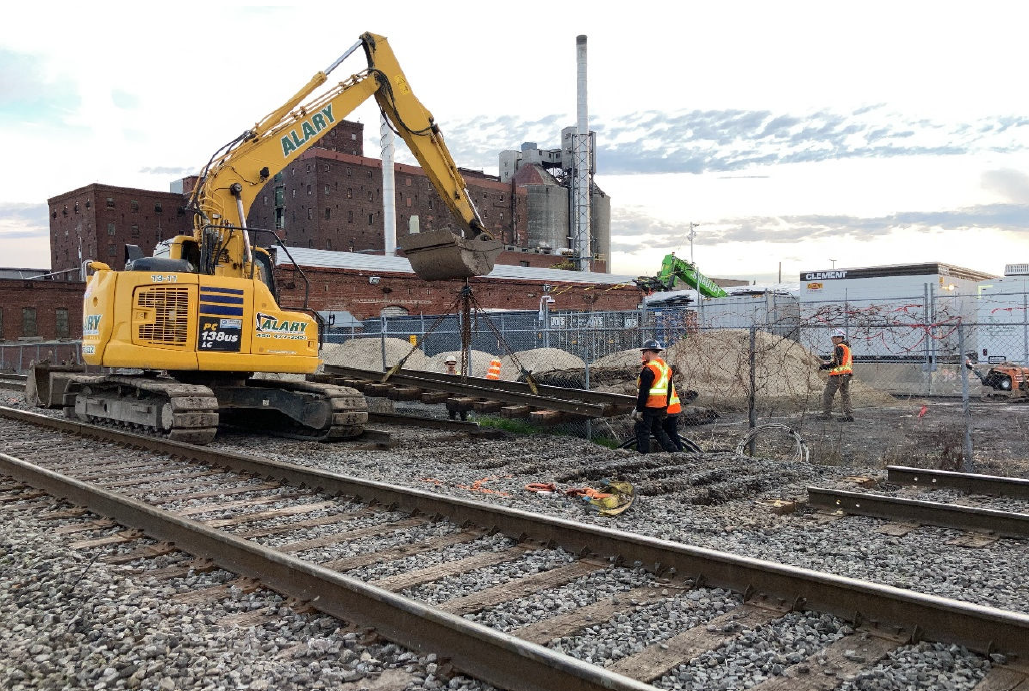

Installation of new rail tracks on the Lantic site
2025
Completion of structural project works

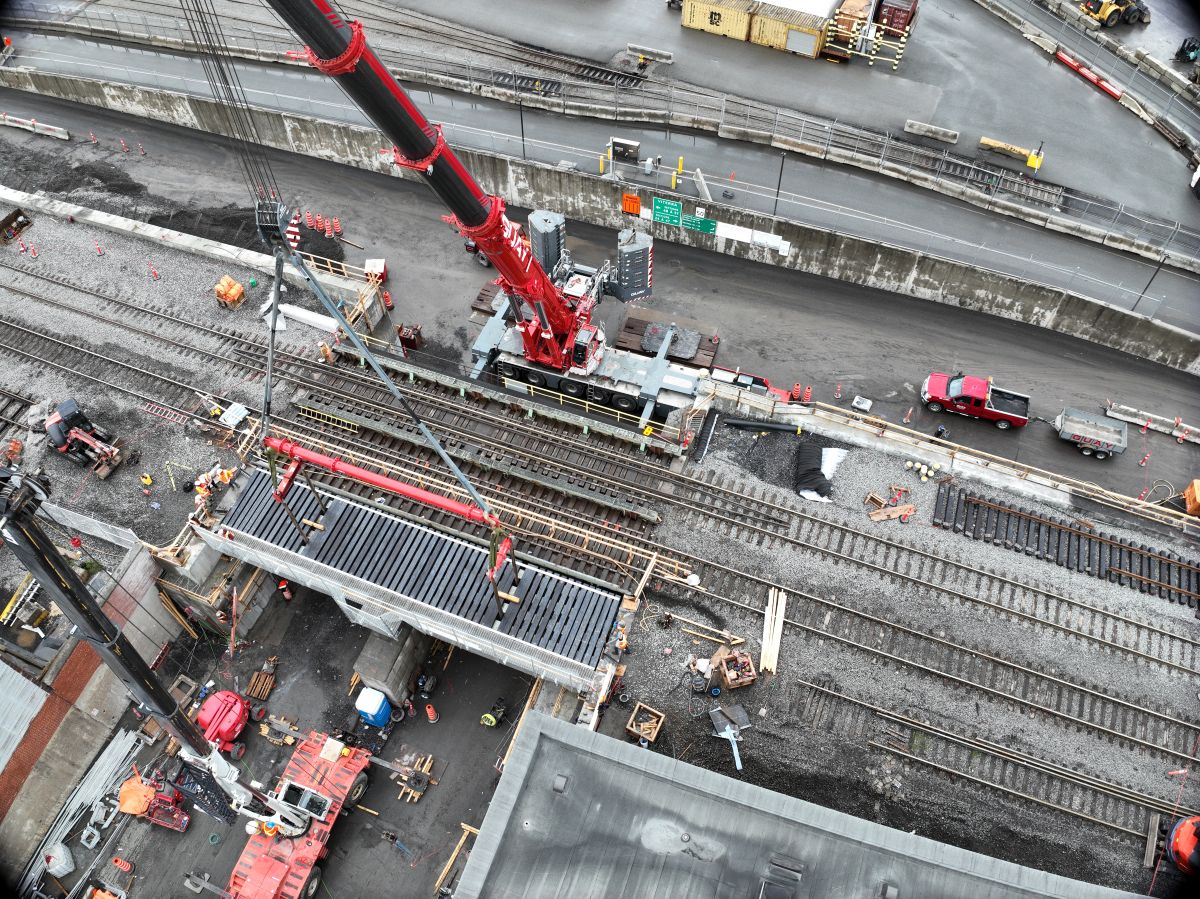

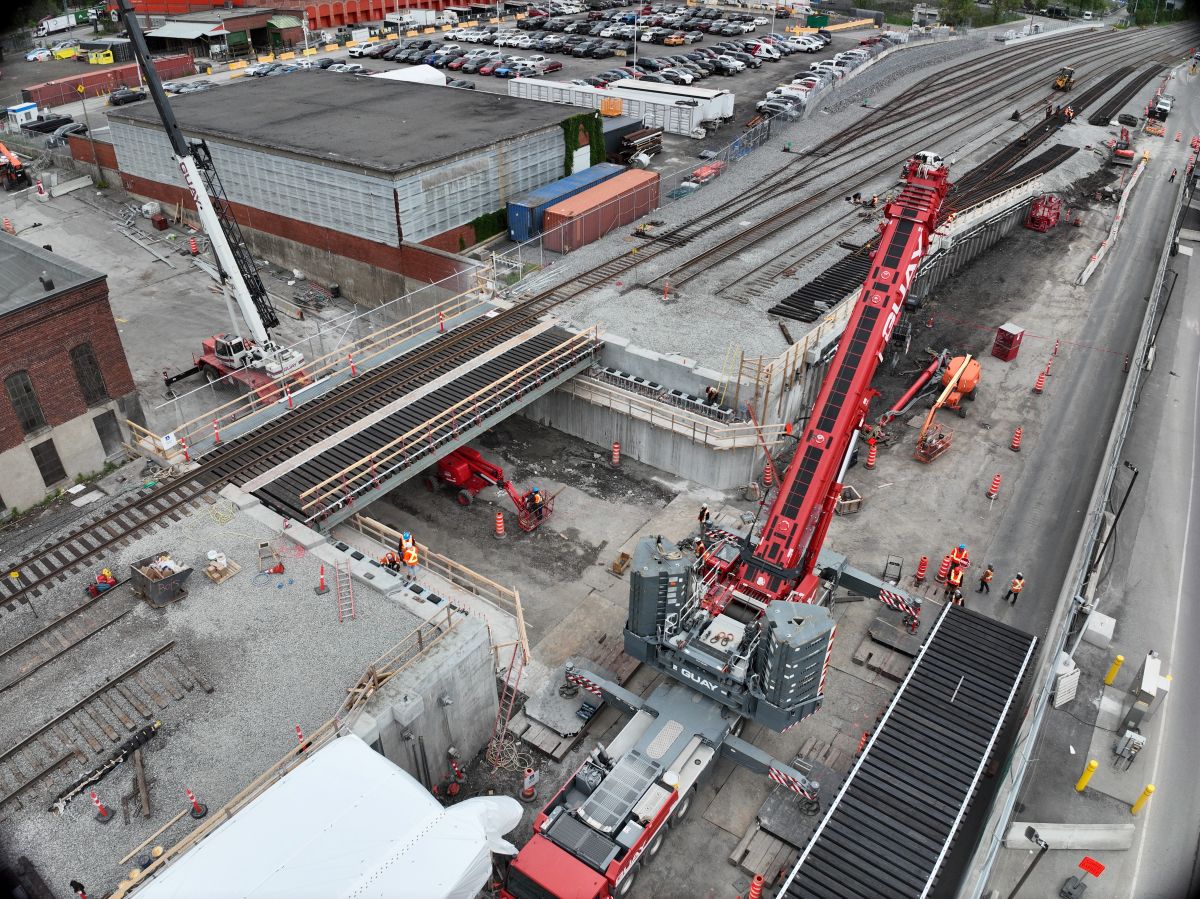

- Replace bridge decks with new work blocks
- Final railway work
- Completion of all structural work
- Demolition and reconstruction of roadway and sidewalks on the Port Road

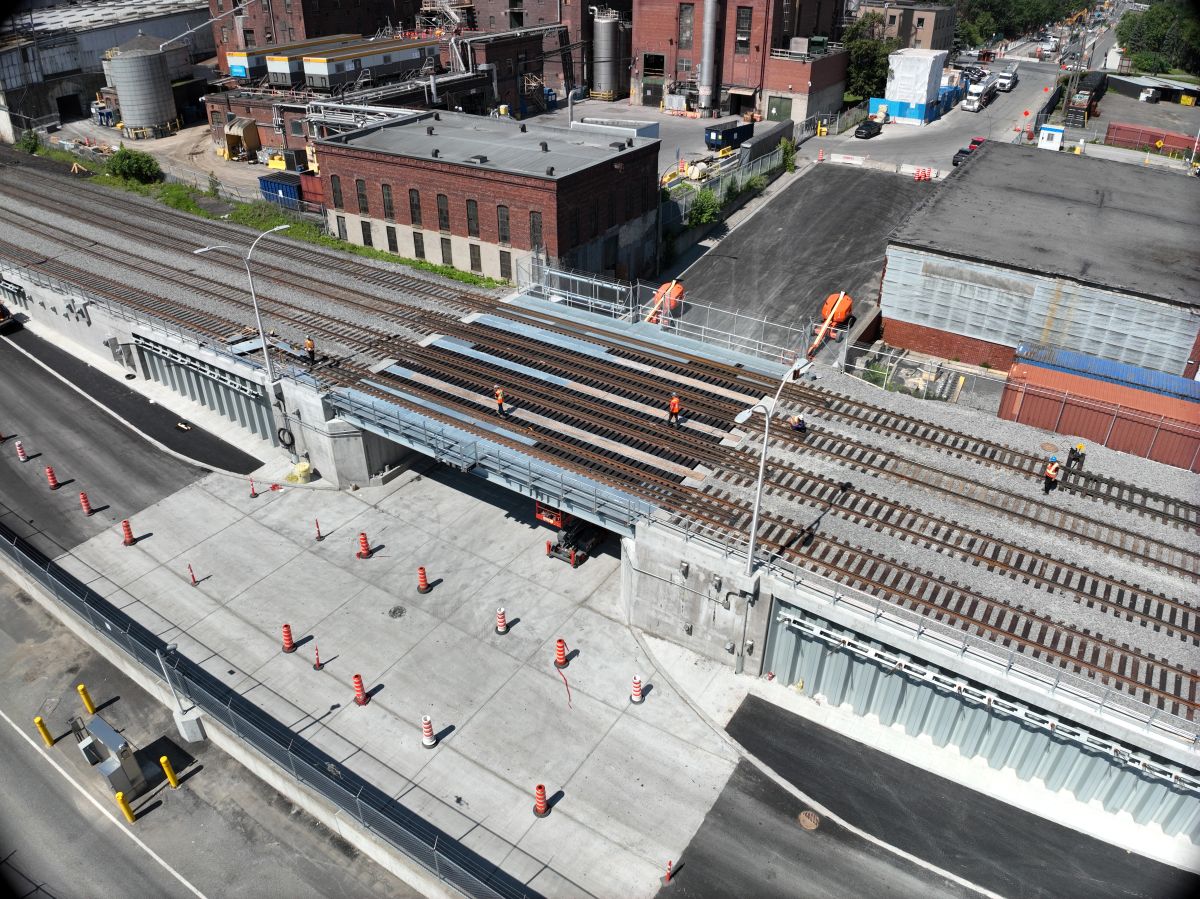

Commissioning of the new railway bridge
