Guidelines for lessees

Terminal 1

Room Capacity

Terminal 1-Full

Banquet (seated): 1,500 people
Reception (standing): 3,275 people

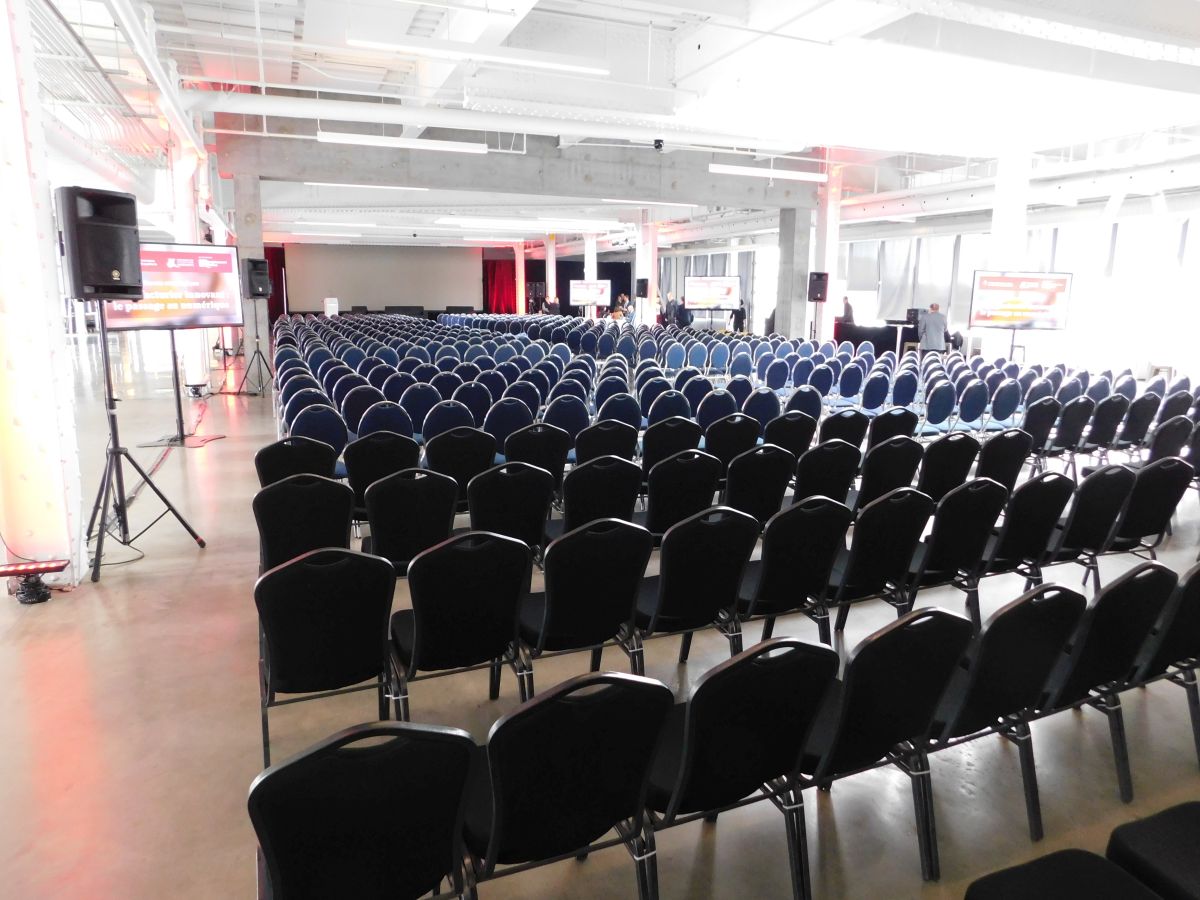

Theatre: 1,664 people

Terminal 1-Split hall

Banquet (seated): 750 people
Reception (standing): 1,635 people
Theatre: 736 people

Room Layouts

DOWNLOAD basic room layout

DOWNLOAD room layout in CAD

DOWNLOAD Terminal 1 Measurements

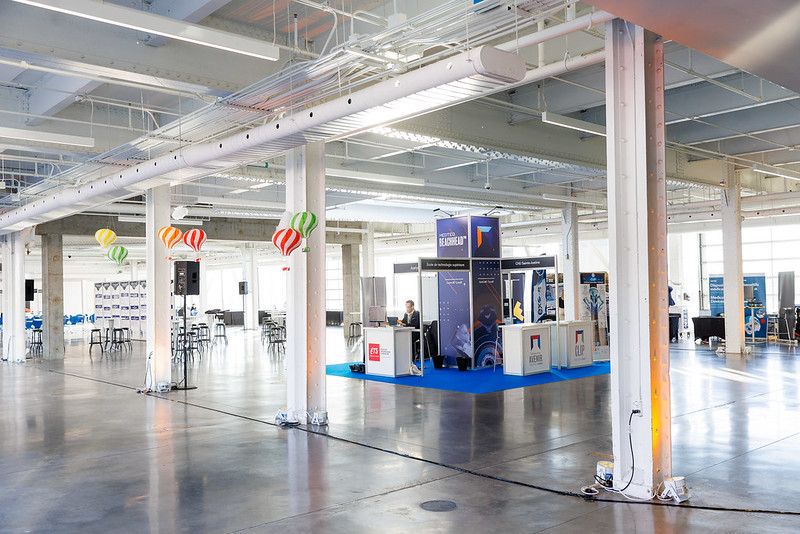

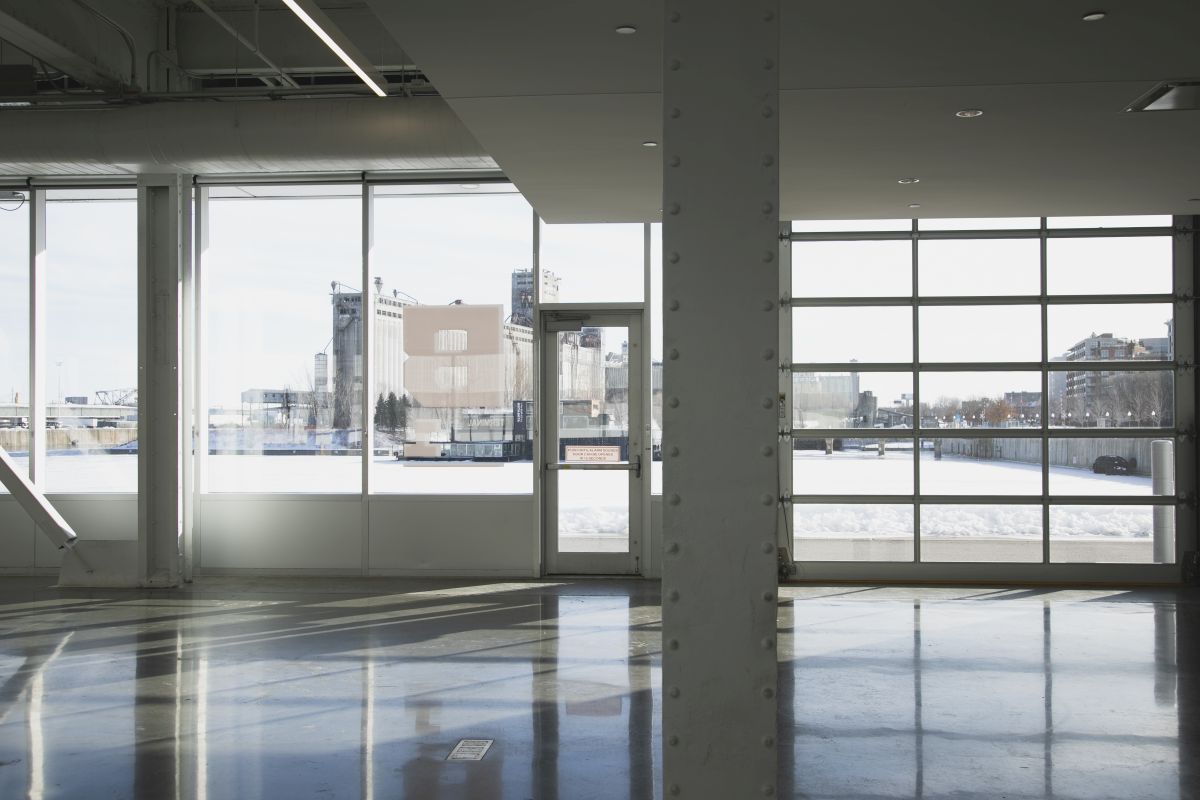

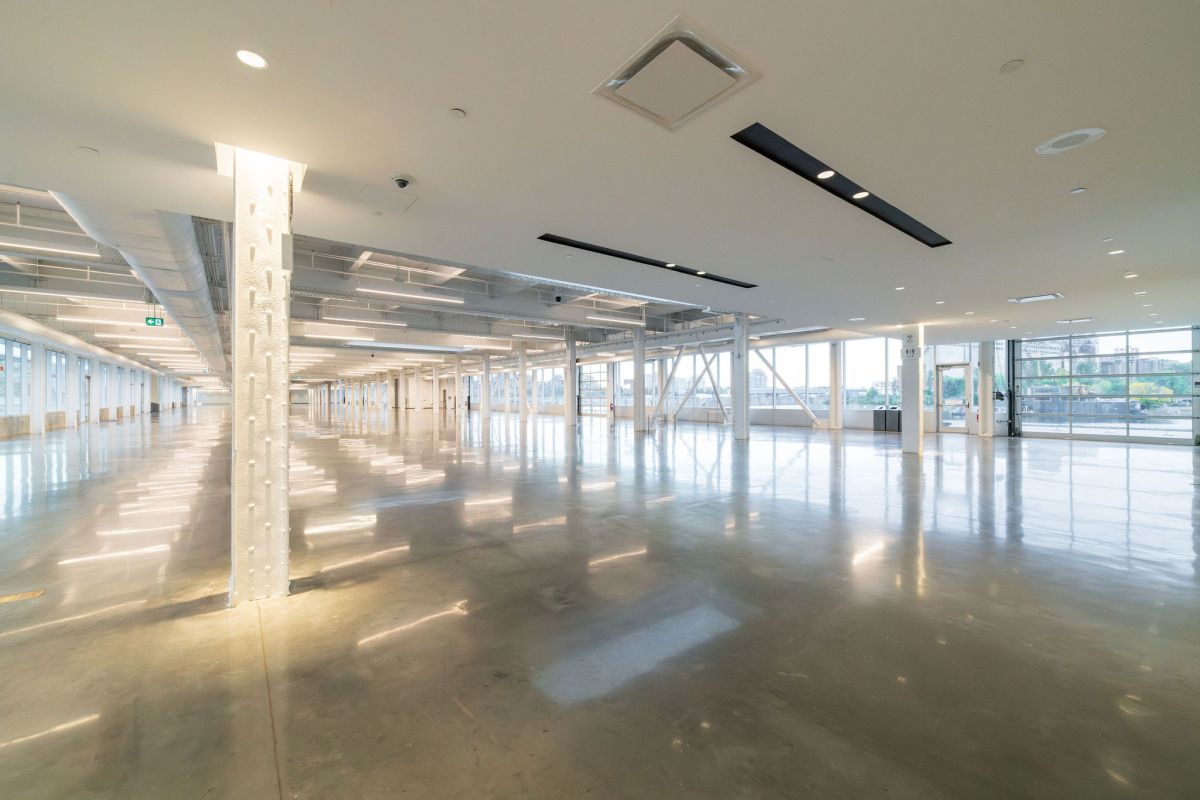

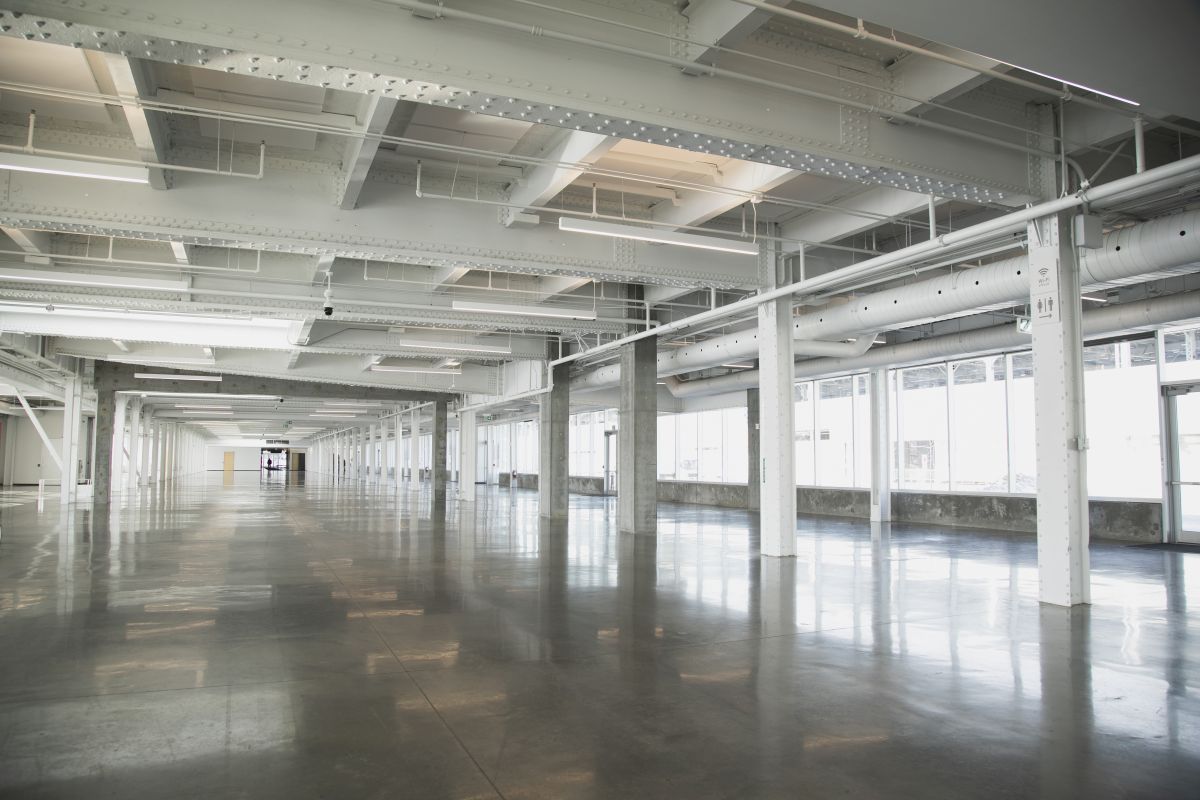

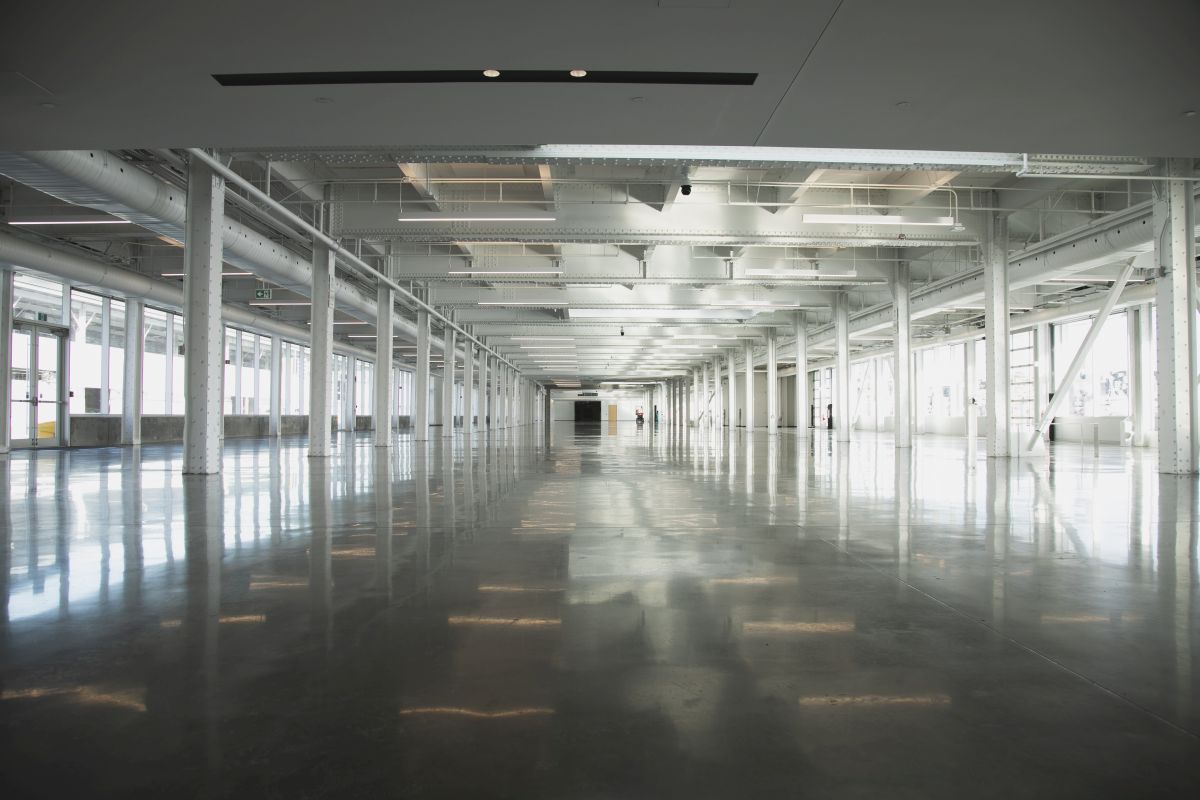

Photo Gallery

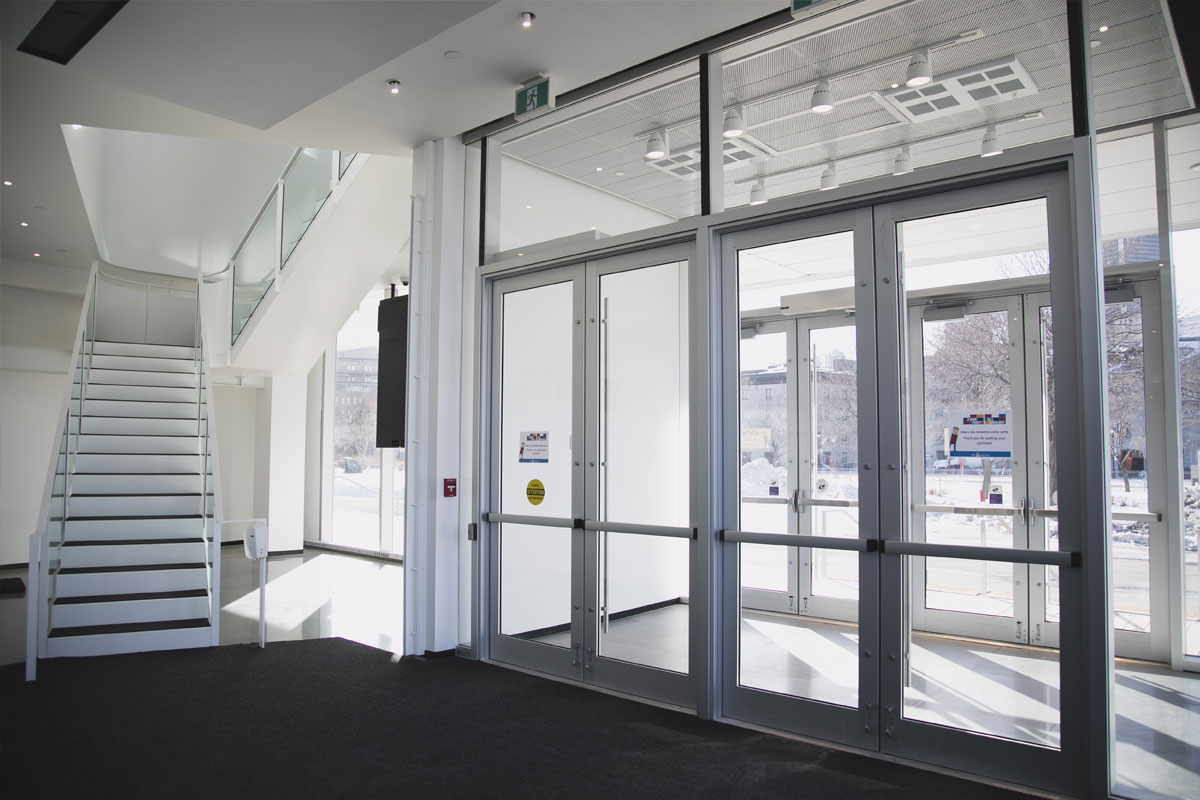

Access to rental spaces

Terminal 1-Full

Terminal 1-Full

Main entrance: 2 double doors with vestibule (via De la Commune Street West)
Secondary doors: 8 double doors (Numbers 1-3-5-7-9-11-13-15)
Access to the quay: 6 garage doors (B-C-D-E-F-G)

Terminal 1 - City side

Terminal 1 - City side

Main entrance: 2 double doors with vestibule (via De la Commune Street West)
Secondary doors: 4 double doors (Numbers 1-3-5-7)
Access to the quay: 3 garage doors (B-C-D)

Terminal 1 - River side

Terminal 1 - River side

Main entrance: 1 double door (Door 15)
Secondary doors: 3 double doors (Numbers 9-11-13)
Access to the quay: 3 garage doors (E-F-G)


Venue located on ground floor

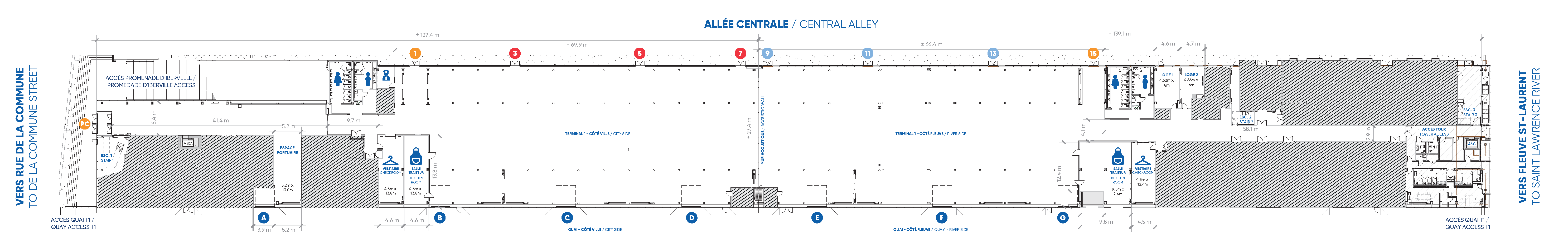

Central Alley plan: Areas and Access


Delivery guide

  • Venue on ground floor at first floor level
  • No loading dock

Option 1: Through the doors on the Main Alley side

Door numbers for Terminal 1 - City side: 3-5-7

Door numbers for Terminal 1 - River side: 9-11-13

Measurements

Size of double doors :
71’’ x 105 ‘’ (180.34 cm x 266.7 cm)

No vehicles are authorized to wait on Promenade du Vieux-Port.

Option 2: Through the garage doors on the quay

Garage doors Terminal 1 - City side: B-C-D

Garage doors Terminal 1 - River side: E-F-G

Measurements

Clearance on Promenade du Vieux-Port :
12' (3,65 m)

Quay measurements (doors B to G) :
25’5’’ x 250’ (7,77 m x 76,2 m)

Garage door measurements :
12’ x 12’8’’ (3,66 m x 3,90 m)

Ventilation duct in front of garage doors - height :
11’5’’ (3,5 m)

Door access width :
15' (4,57 m)

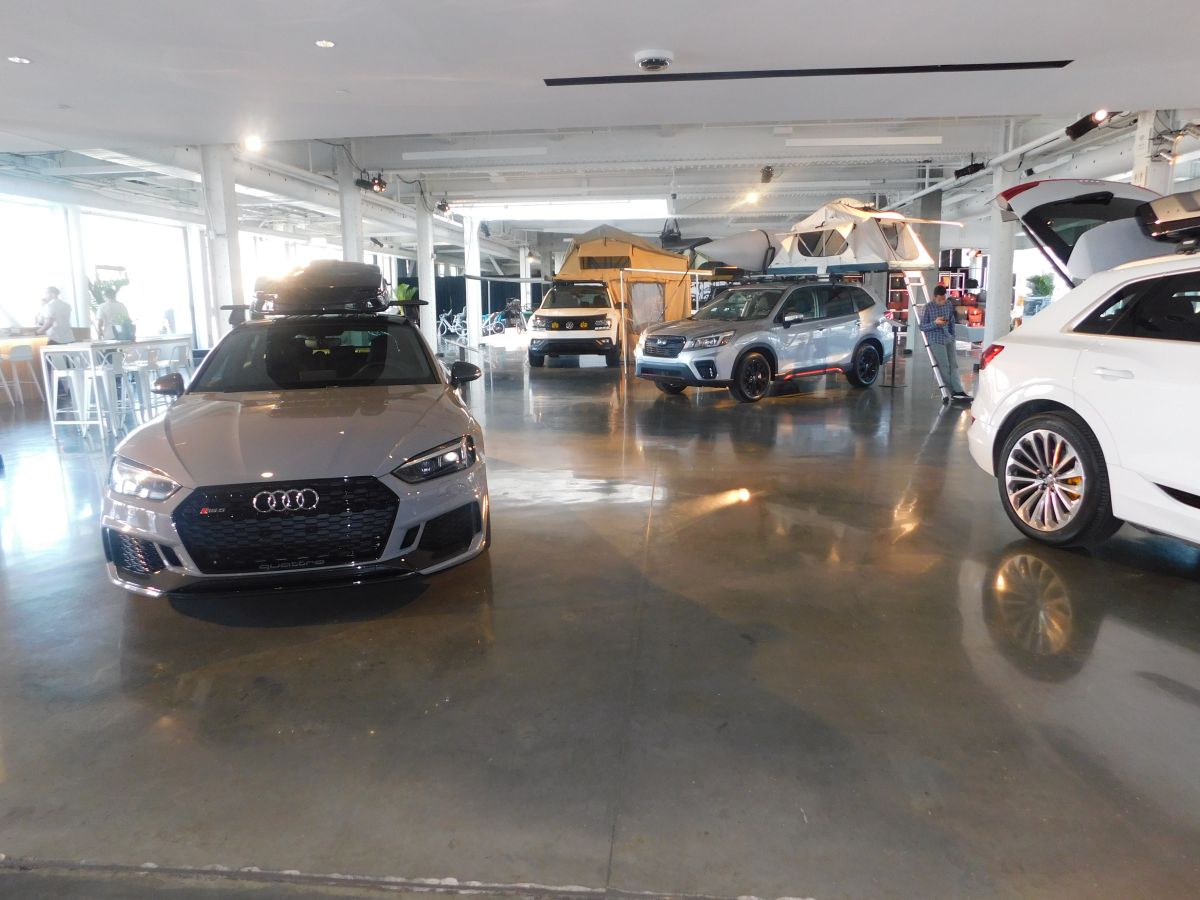

Oversized deliveries and car deliveries

Deliveries can be made via the garage doors on the quay from Promenade du Vieux-Port. One truck at a time will be allowed on the quay, and the area must be secured. Authorization is required from your coordinator prior to the event.

Measurements

Terminal 1 - Full

37 436 ft2 (3 478 m2)
447’ x 90’ (136 m x 27 m)

Full quay :
408’ x 25’5’’ (124 m x 7,7 m)

Terminal 1 - City side

19 106 ft2 (1 775 m2)
229 ’ x 90’ (70 m x 27 m)

City side quay :
229’ x 25’5’’ (70 m x 7,7 m)

Terminal 1 - River side

18 330 pi2 (1 703 m2)
218’ x 90’ (66 m x 27 m)

River side quay :
218’ x 25’5’’ (66 m x 7,7 m)

Related spaces - City side

Cloakroom:
15’2’’ x 45’3’’ (4,6 m x 13,8 m)

Cloakroom:
15’3’’ x 45’3’’ (4,6 m x 13,8 m)

Related spaces - River side

Cloakroom:
14’9’’ x 40’9’’ (4,5 m x 12,4 m)

Kitchen:
32’ x 40’9’’ (9,8 m x 12,4 m)

Dressing Room 1 :
15’2’’ x 26’3’’ (4,62 m x 8 m)

Dressing Room 2 :
15’4’’ x 19’9’’ (4,66 m x 6 m)

Columns and ceiling

Distance between middle columns :
41’ (12,4 m)

Distance between side columns :
20’ (6 m)

Ceiling height - main beam :
13’ (3,96 m)

Ceiling height - main beam :
15’ (4,57 m)

Height of lighting system (neon LED) :
12’6’’ (3,84 m)

Column:
12,5’’ x 14’’ (31,75 cm x 35,56 cm)

Door sizes

Double door :
71’’ x 105 ‘’ (180,34 cm x 266,7 cm)

Garage door :
12’ x 12’8’’ (366 cm x 390 cm)

Main Alley

914’2’’ x 82’8’’ (278,6 m x 25,2 m)

TECHNICAL SPECIFICATIONS

Electricity

Several electrical outlets on floor and columns (15 amp.)

Clients are responsible for providing adapters for their own equipment (e.g. stove jack).

DOWNLOAD electrical plan

Cam-Lock specs

2 200 amp Cam-Lock connection panels-120/208 volts
(1 panel in each hall)

  • Model: STA-205-30F-213-03
  • Series: 161025-2B
  • Voltage: 120/208
  • Cycle: 60
  • Phase: 3
  • Amperage: 200
  • Number of poles: 5
  • Option 03: 500 MCM terminal connector

Screen

2 screens 65'' landscape (1 screen in each room - in front of doors 1 and 15)

1 screen 75'' portrait (at the main entrance of De la Commune Street side)

1 projector 12' x 7.5' (3.65 x 2.26 m) (port area)

Hanging beam

Hanging is allowed on steel beams only. No hanging is allowed on piping, electrical conduits and lighting system. In case of doubt, contact the logistics agent on site.

Load-bearing capacity of main beams:
5,000 lbs.

Load-bearing capacity of secondary beams:
500 lbs.

DOWNLOAD Perspectives & roof

Store

Grey semi-sheer manual blinds in all windows. Please note that there are no blinds in front of doors, garage doors or in upper window.

DOWNLOAD elevation plan of doors and windows

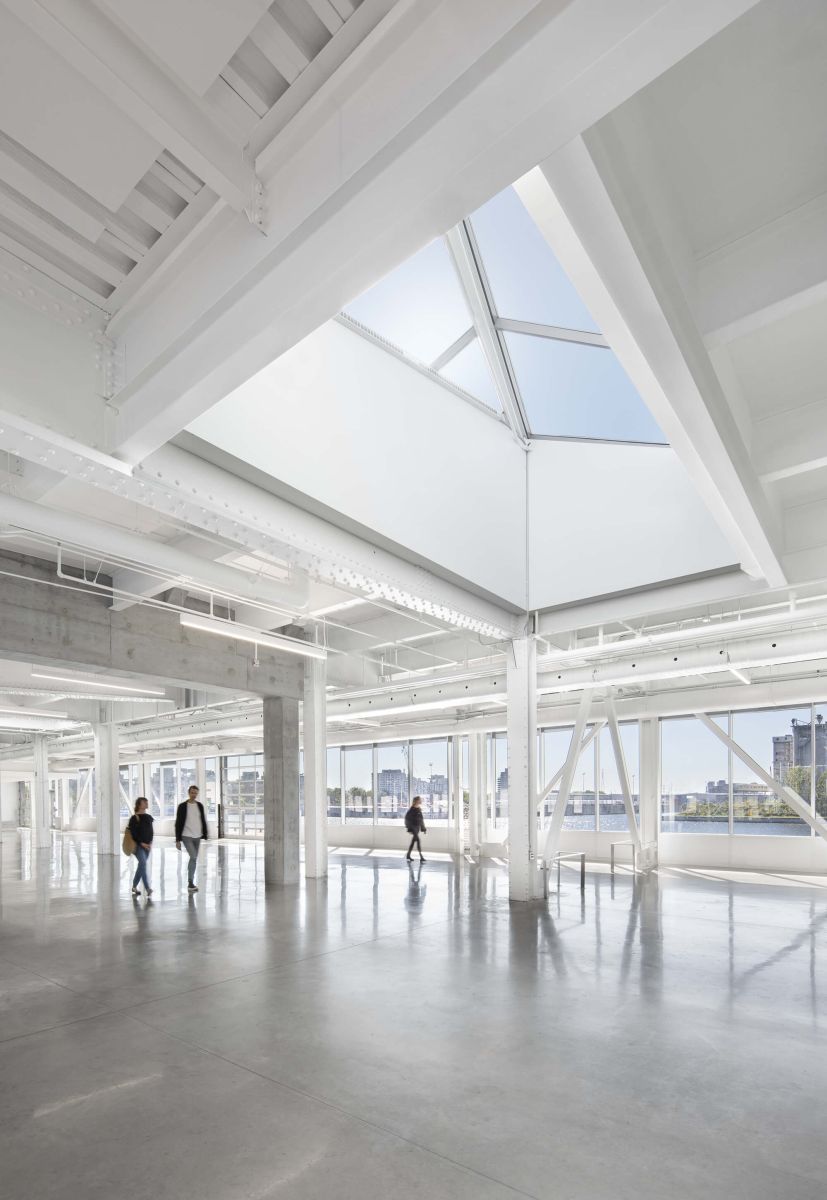

Skylights

Terminal 1 is fitted with 3 skylights

If the client wishes to cover the skylights:

  • Installation must be done from the outside only, without damaging the plants.
  • Installation will be supervised by a security guard at a rate of $48/hour, minimum 4 hours.
  • The use of sandbags is recommended to secure the fabric without touching the glass; no permanent fixings are allowed (no screw holes or other).
  • The Lessee is fully liable for the operation. Charges will be incurred if installations are damaged, including greenery.

DOWNLOAD Iberville Promenade plan

Lighting

White LED lighting system only, which can be dimmed to change intensity. It is possible to control neon intensity by section with assistance from the on-site l agent. No touching or handling of any device is allowed (e.g. attaching or tilting neon lights).

DOWNLOAD lighting plan

Related Spaces


DOWNLOAD Related spaces plan

Kitchen

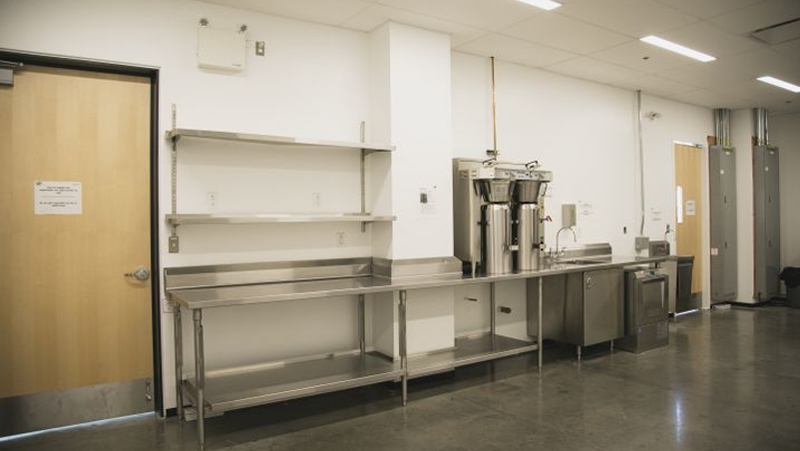

T1 Kitchen - City side

Partially equipped kitchen, NO cooking possible

Because the catering space in Terminal 1 - City side is not equipped with an exhaust hood, it is not possible to cook in this space.

Food can only be reheated.

Equipment list
  • 1 cold room 14'' x 9'6'' with 1 door (Norbec)
  • 1 coffeemaker, 11.4 litres dual station CBS-62H (Fetco)
  • 1 LXeR dishwasher with 2 20” x 20” racks (Hobart)
  • 1 ice machine with 2 mobile ice bins (Follett)
  • 1 sink + 1 touchless sink
  • Stainless steel work counter with shelves

DOWNLOAD kitchen plan city side

Measurements

T1 Kitchen - City side measurements :
15’3’’ x 45’3’’ (4,6 m x 13,8 m)

Kitchen door size (2 single doors) :
84’’ x 48’’ (213 cm x 121,92 cm)

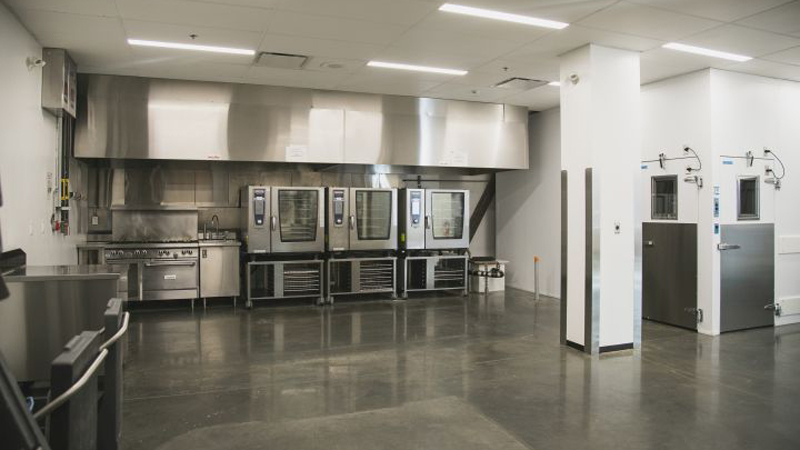

T1 kitchen - River side

Equipped kitchen WITH cooking allowed.

Equipement list
  • 1 cold room 17’ 9” x 14’ 8” with 2 doors (Norbec)
  • 1 48” gas stove with 8 open burners, standard oven and storage base (Garland)
  • 3 5-rack SelfCooking Center ovens with storage (Rational)
  • 1 coffeemaker, 11.4 litres dual station CBS-62H (Fetco)
  • 1 LXeR dishwasher with 2 20” x 20” racks (Hobart)
  • 1 ice machine with 2 mobile ice bins (Follet)
  • 2 sinks
  • Stainless steel work counter with shelves

DOWNLOAD kitchen plan river side

Measurements

Kitchen :
32’ x 40’9’’ (9,8 m x 12,4 m)

Kitchen door size (2 single doors):
84’’ x 48’’ (213 cm x 121,92 cm)

Additional information for the kitchen

Mop, bucket, broom and dustpan available on site

Frying and BBQ permitted outside only with prior authorization

No freezers

Caterer must rent worktables

Waste sorting bins (garbage, recycling and compost) available on site

Several wall-mounted electrical outlets on independent circuits (see electrical plans)

DOWNLOAD
Schedule C – Catering schedule

DOWNLOAD
Operating instructions Rational and gas oven

DOWNLOAD
Operating procedure Fetco coffee brewer

Loges


Loges 1 and 2 are located in Terminal 1 on the River side past the bathrooms. The loges are included with rental of the Full or Split Terminal - River side. Loge 1 has direct access to the Main Alley.

Please note that there are no private washrooms.

The logistics agent will hand over the access cards to the tenant upon their arrival on-site.

The access cards must be returned to the logistics agent at the end of the room rental period.

In the event of cRe, theft or damage to the access card, an amount of $200.00 per access card will be charged after the event.

Loge 1

Equipment list
  • 2 x 8’ folding tables
  • 10 chairs
  • 1 refrigerator
  • 1 microwave oven
  • Outside access
Measurements

15’2’’ x 26’3’’ (4,63 m x 8,01 m)

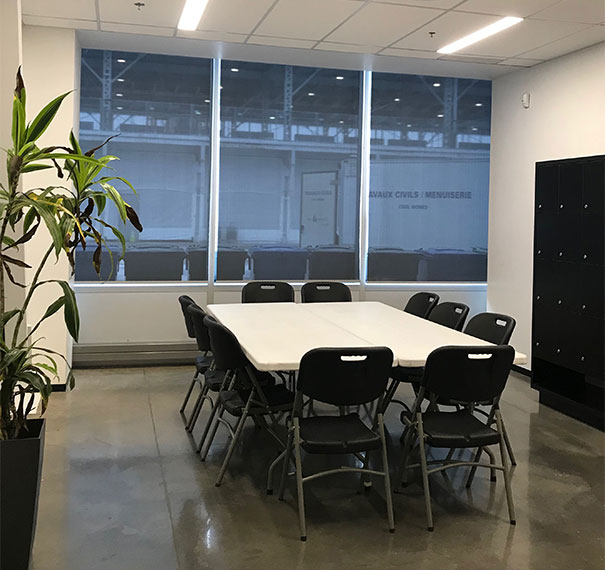

Loge 2

Equipment list
  • 2 x 8’ folding tables
  • 10 chairs
  • 1 refrigerator
  • 1 microwave oven
  • Sink
Measurements

15’4’’ x 19’9’’ (4,69 m x 6,07 m)

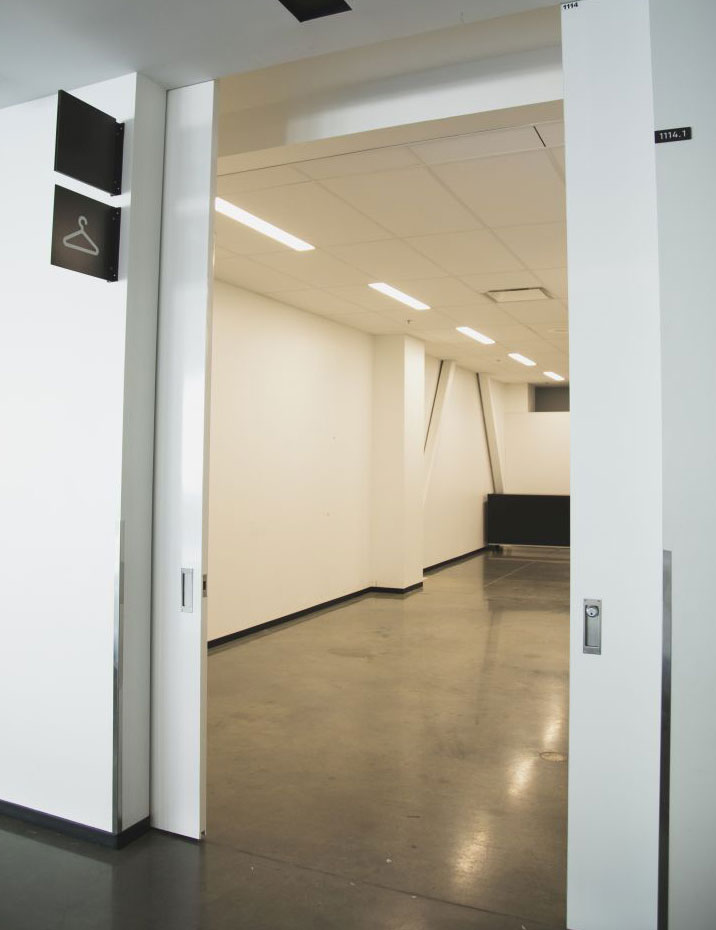

Cloakroom

The Grand Quay provides the Tenant with a changing room area that the Tenant may use for the duration of the rental. The cloakroom spaces are located in Terminal 1, in front of Door 1 and Door 15. The Grand Quay does not provide any structures, personnel, or equipment. A service counter and signage are available for each space.

APM disclaims all responsibility in the event of loss, theft, or illegal acts that may be committed against the Tenant, their guests, or third parties on the Rented Premises or elsewhere on the site.

Equipment list

  • Reception desk included (equipment extra)

Measurements

City side cloakroom measurements :
15’2’’ x 45’3’’ (4,6 m x 13,8 m)

City side cloakroom measurements :
14’9’’ x 40’9’’ (4,5 m x 12,4 m)

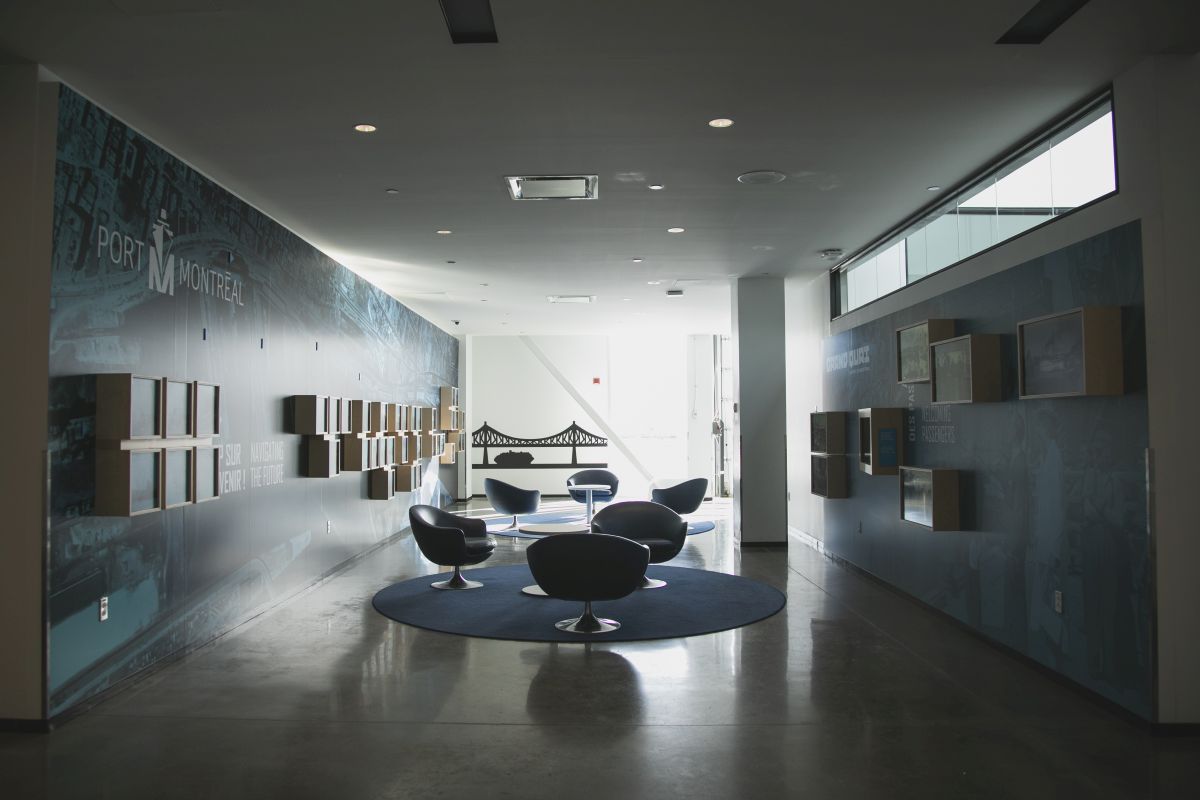

Port Area


The Lessee may use the traffic and common areas of the Grand Quay leading to the terminal to welcome guests for the event. However, the Lessee must ensure that it does not impede traffic on the Grand Quay and must allocate resources, at its own expense, to properly direct guests to the Grand Quay and cooperate with the authorities in place.

Equipment list

  • 4 benches
  • 4 armchairs
  • 1 table
  • 1 round carpet
  • 4 ship models (non removable)

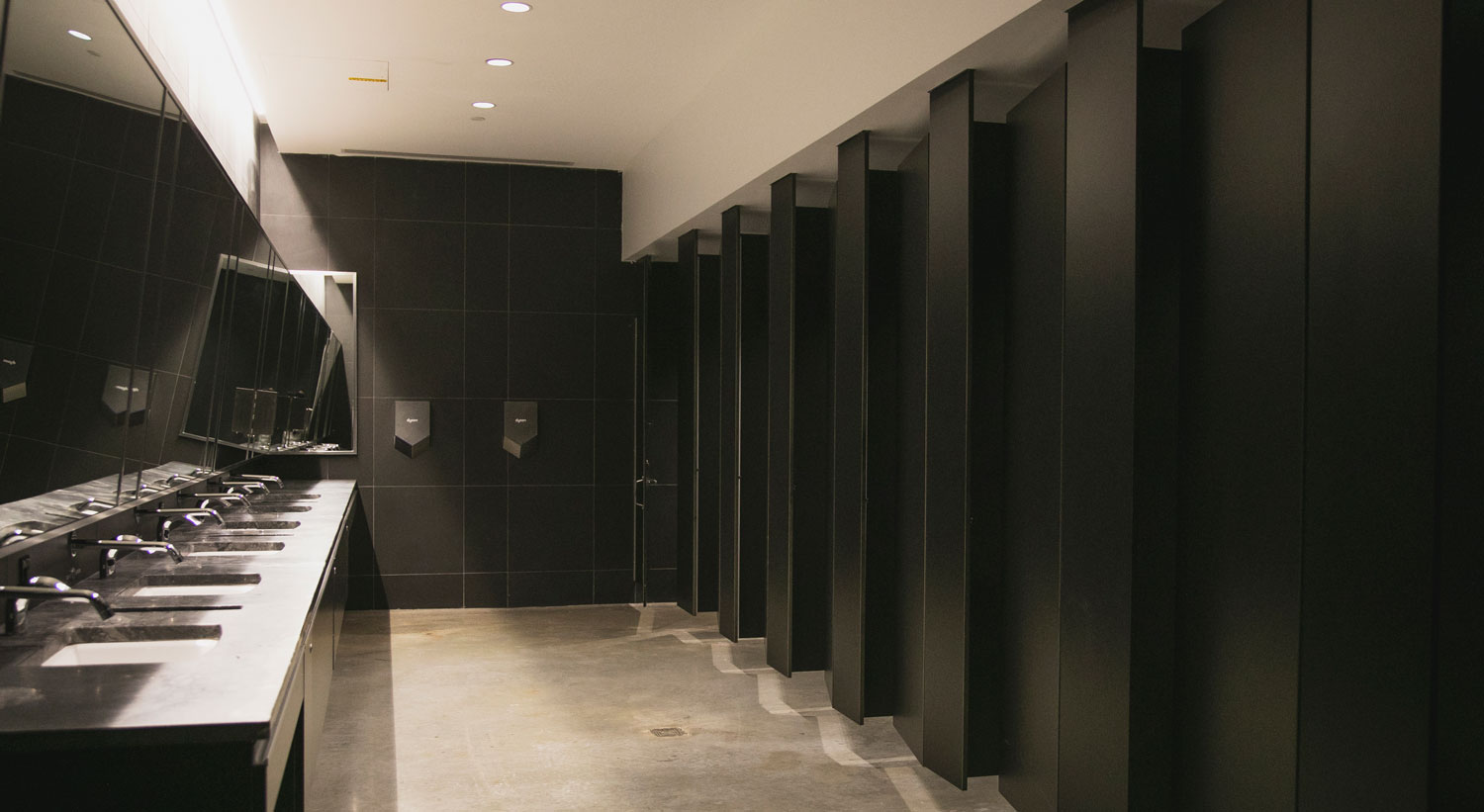

Washrooms

To meet sanitary requirements, there must be a minimum of 1 washroom per group of 300 men and 1 washroom per group of 150 women.

Women’s washrooms

  • 7 toilets
  • 1 reduced mobility toilet
  • 6 sinks
  • 1 changing table
  • 2 hand dryers
  • 1 trash can

Men’s washrooms

  • 1 toilet
  • 1 reduced mobility toilet
  • 3 urinals
  • 4 sinks
  • 1 changing table
  • 2 hand dryers
  • 1 trash can

Measurements

Stall door :
23 ½ ’’ X 84’’ (59,69 cm x 213,36 cm)

Stall door - reduced mobility :
33 ½ ’’ X 84’’ (85,09 cm x 213,36 cm)

Horizontal mirror (Women’s washrooms - Terminal) :
26’ x 4’ (7,92 m x 1,22 m)

Horizontal mirror (Men’s washrooms - Terminal):
17’ x 4’ (5,18 m x 1,22 m)

Toilettes des hommes

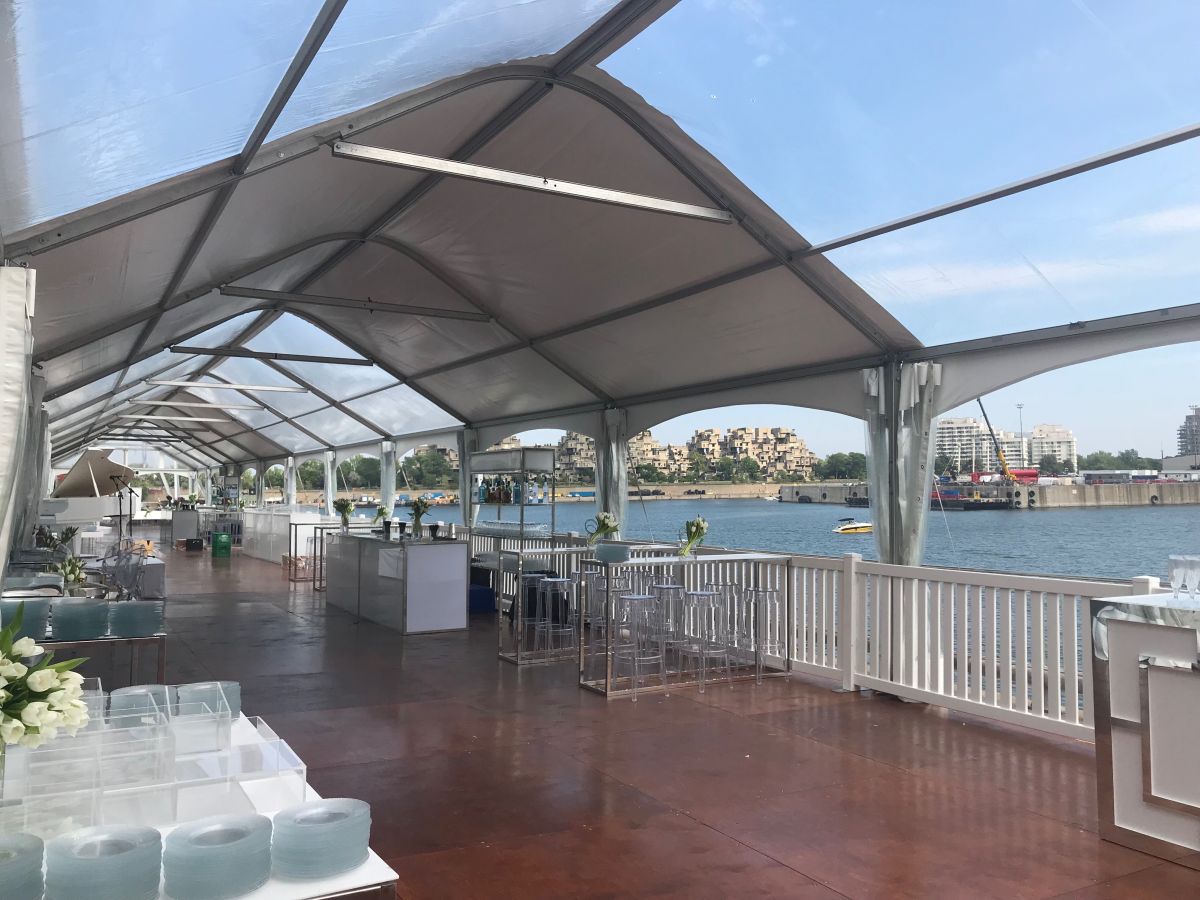

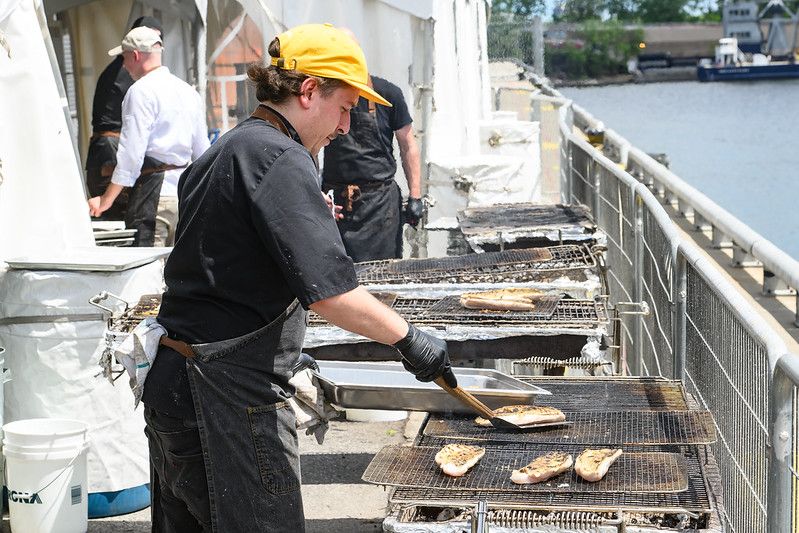

QUAY ($ extra)

Outdoor area located on Level 1 beside Terminal 1

It can be accessed from:

  • Inside Terminal 1
  • Promenade du Vieux-Port

The quay is not open to the public.

There are no electrical outlets available on the quay.

It is possible to make a section or the full quay private to accommodate a street truck, set up a reception area, hold a wedding ceremony or install a marquee.

The Grand Quay will cordon off the area made private with crowd fencing.

A second alcohol permit will be required for outdoor consumption.

A smoking area is permitted on the quay.

Noise pollution guidelines must be respected.

Measurements

Full quay :
408’ x 25’5’’ (124 m x 7,7 m)

Full quay :
229’ x 25’5’’ (70 m x 7,7 m)

River side quay :
218’ x 25’5’’ (66 m x 7,7 m)

Distance between the riverfront and the crowd fencing :
4’ (1,2 m)

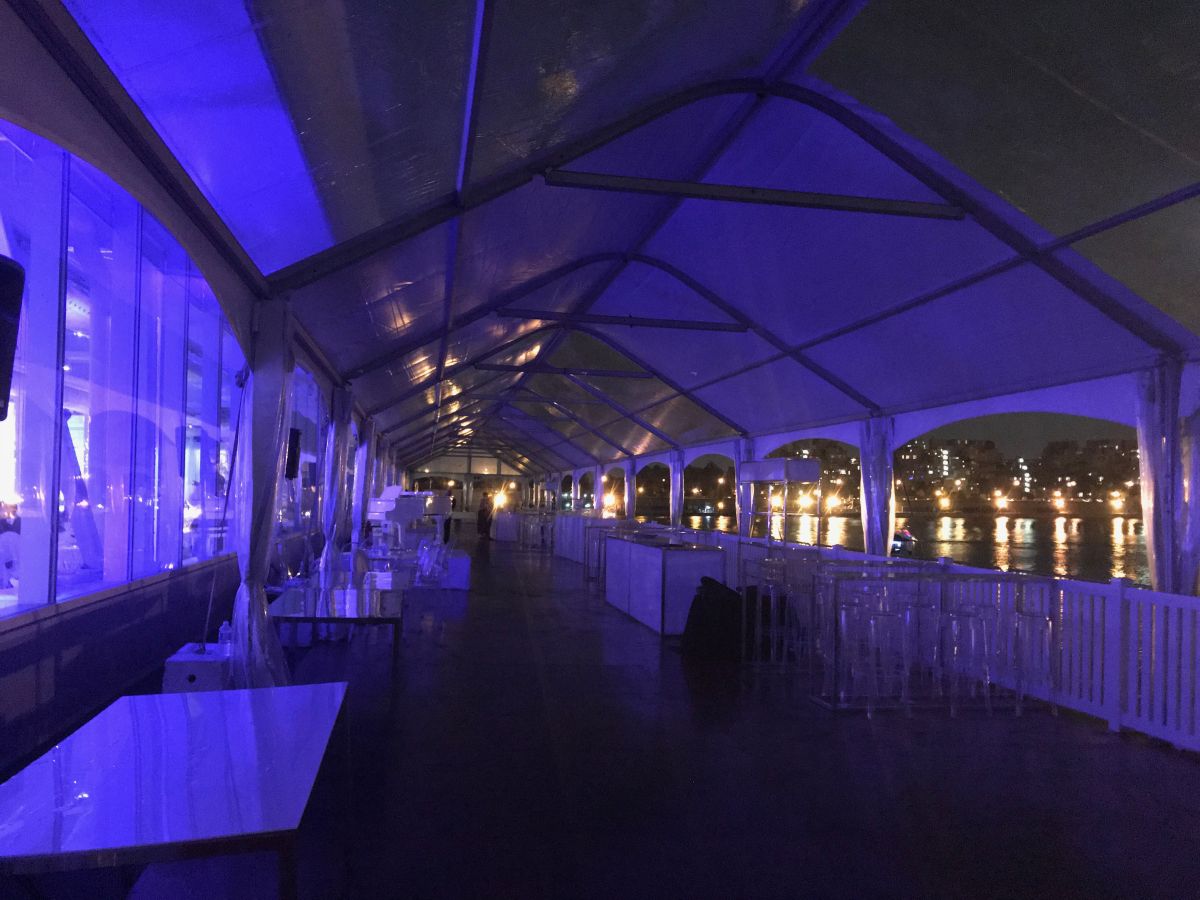

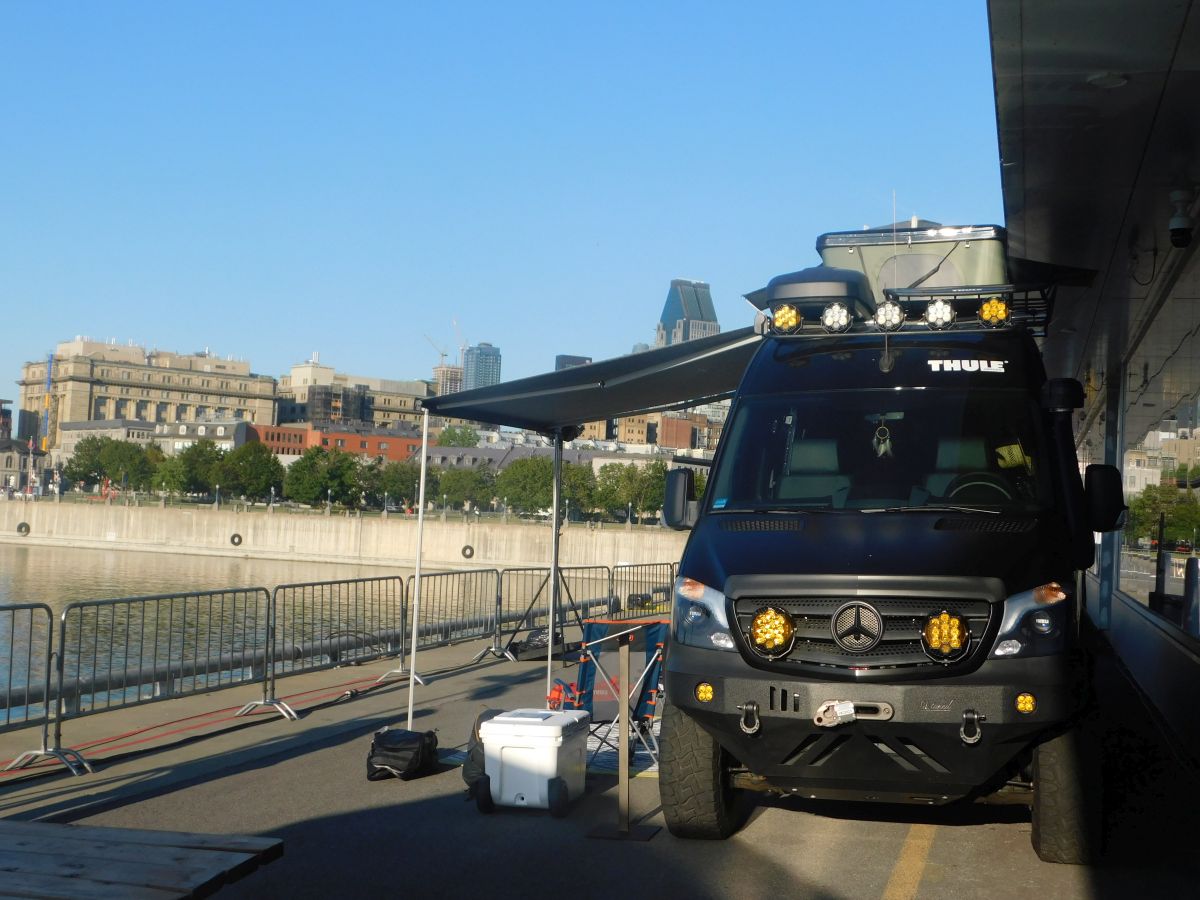

Photo gallery

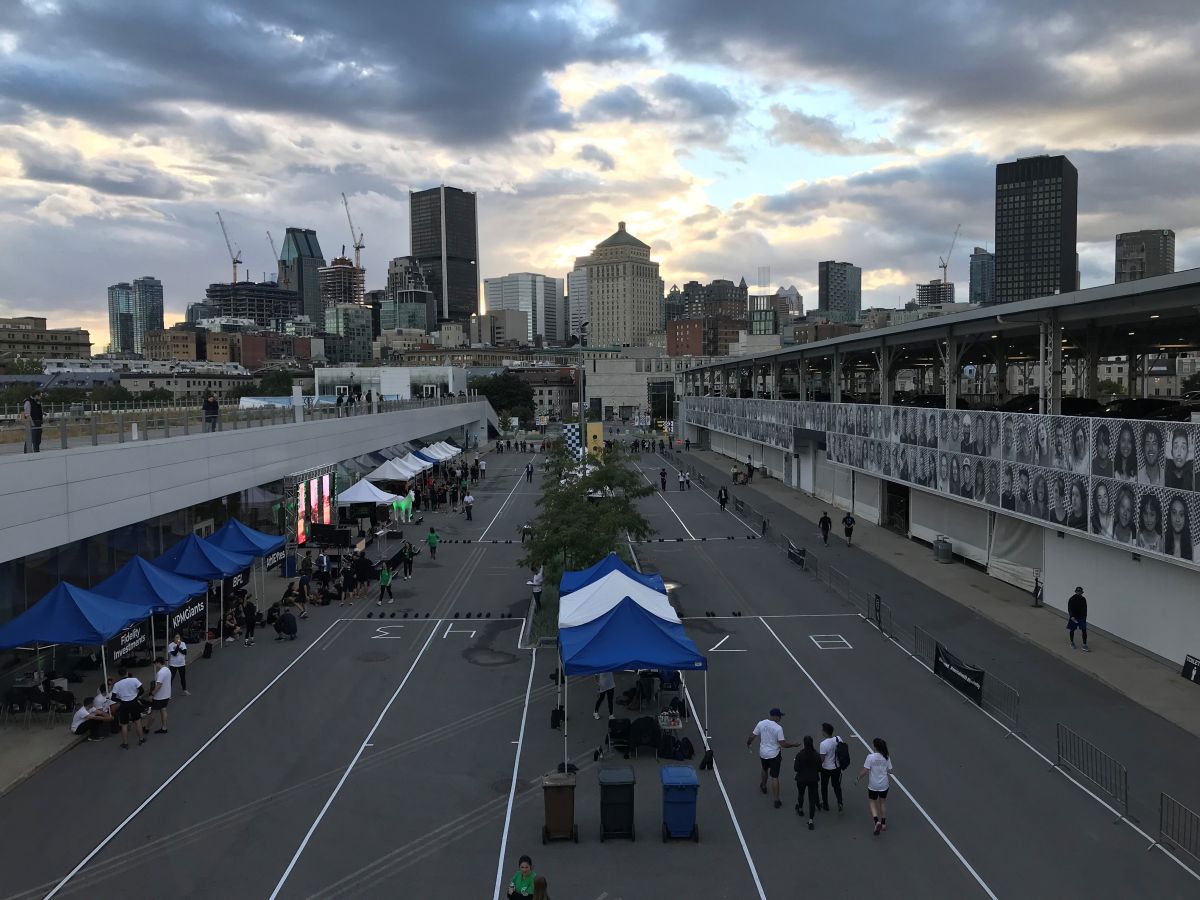

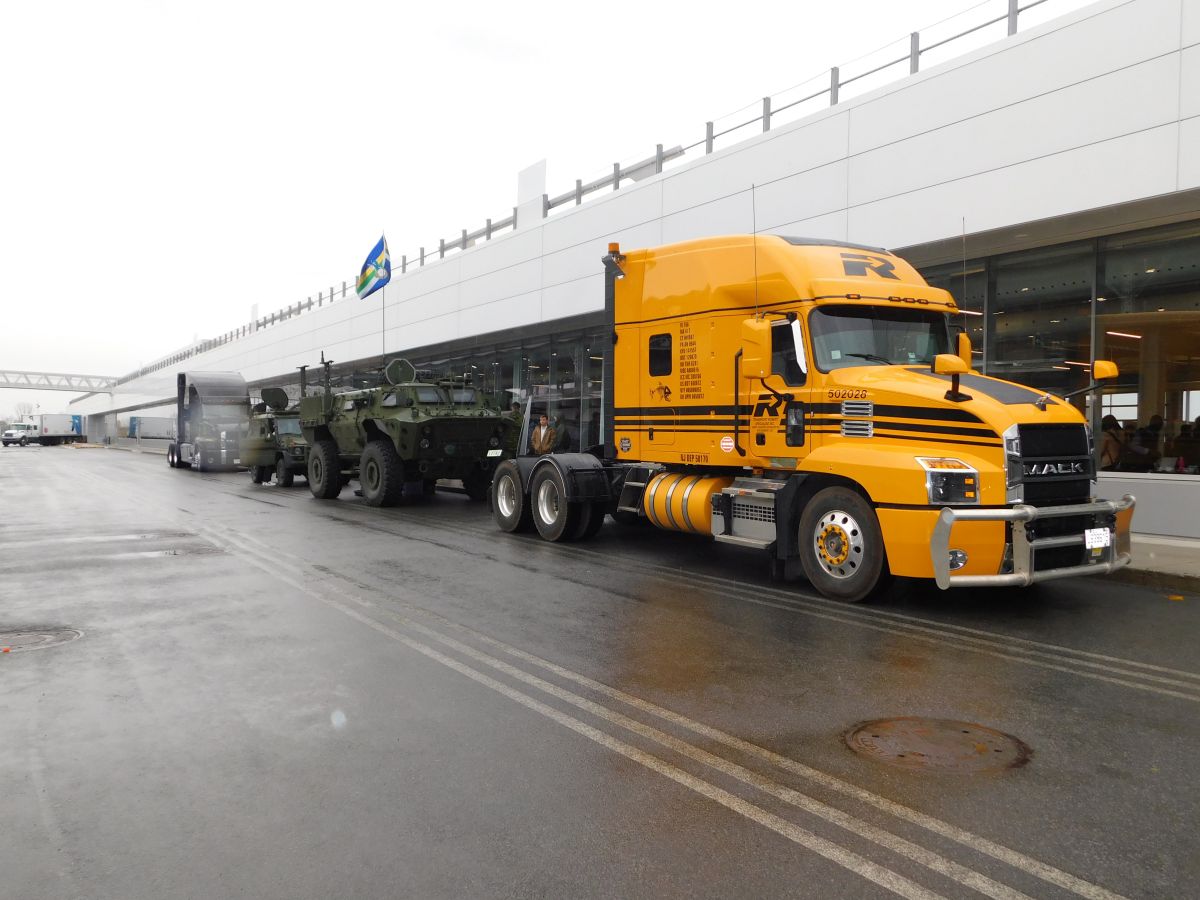

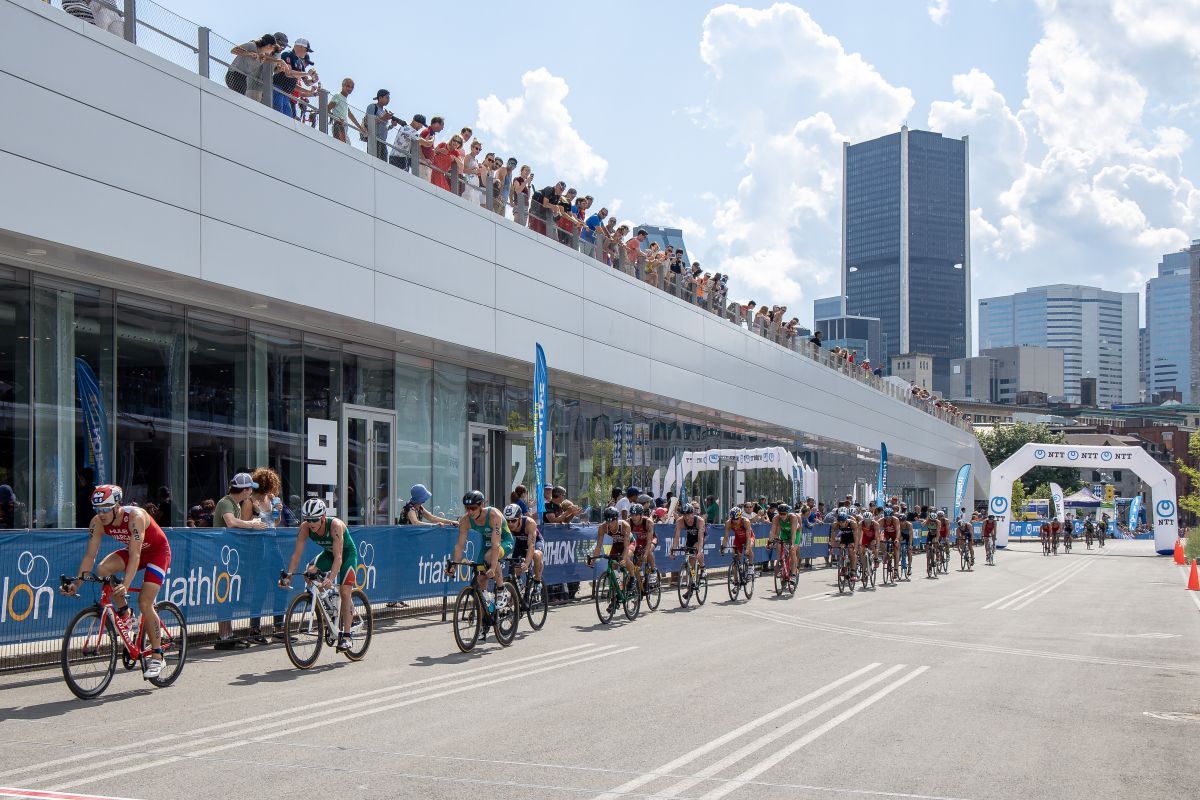

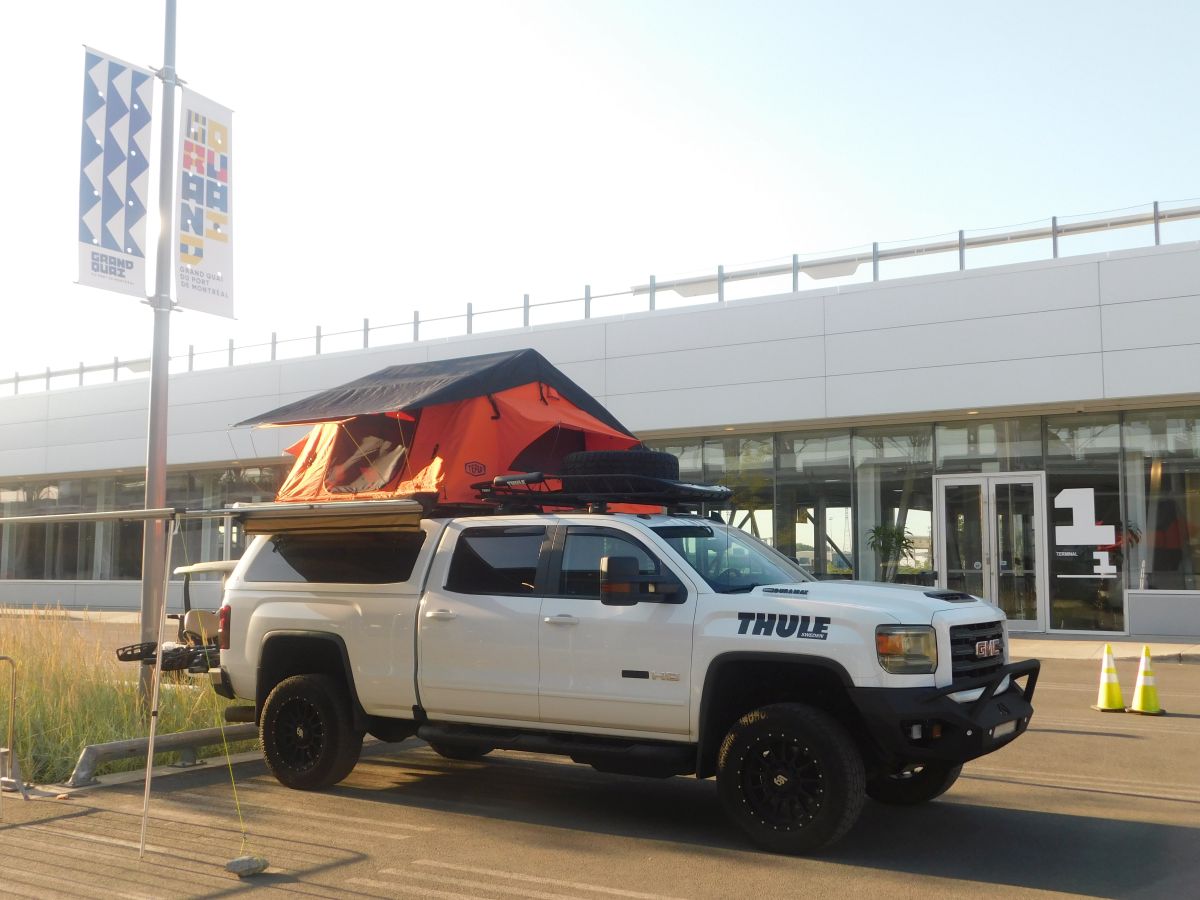

Main Alley ($ extra)

Outdoor area located on Level 1 beside Terminal 1

It can be accessed from:

  • Main entrance of the site

The Main Alley is open to the public.

It is possible to make a section or the full area private.

A traffic corridor must always remain unobstructed.

The Grand Quay will cordon off the area made private with crowd fencing.

A second alcohol permit will be required for outdoor consumption.

Smoking is prohibited within 9 metres of the Main Alley.

Noise pollution guidelines must be respected.

Electricity

20-amp electrical outlets available in the lampposts.

DOWNLOAD main alley plan

Measurements

Full Main Alley :
914’2’’ x 82’8’’ (278,6 m x 25,2 m)

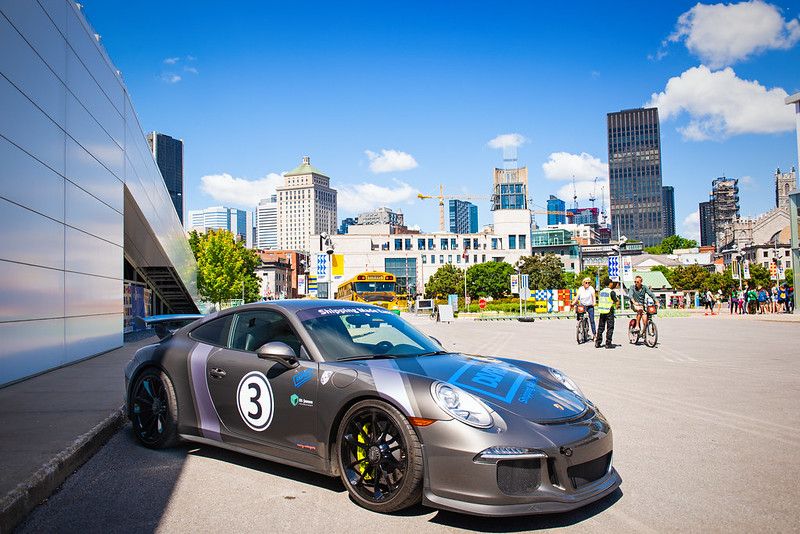

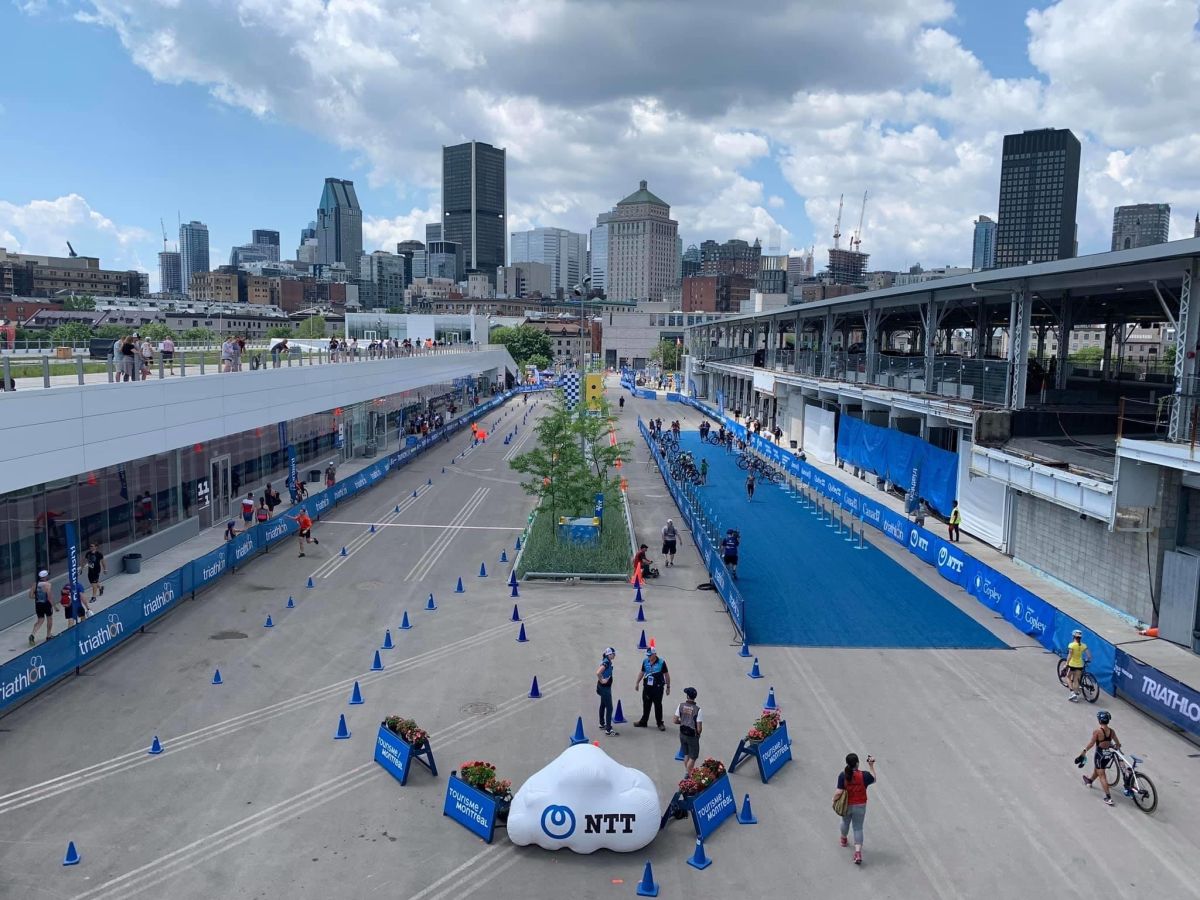

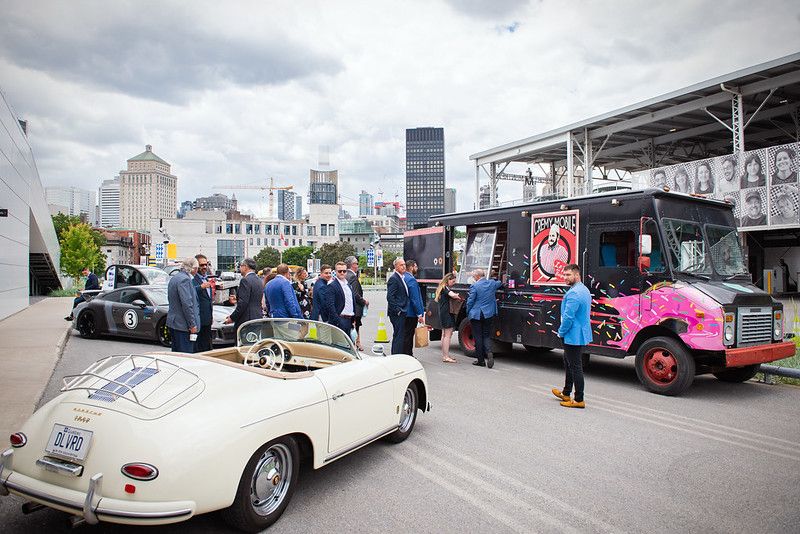

Photo Gallery

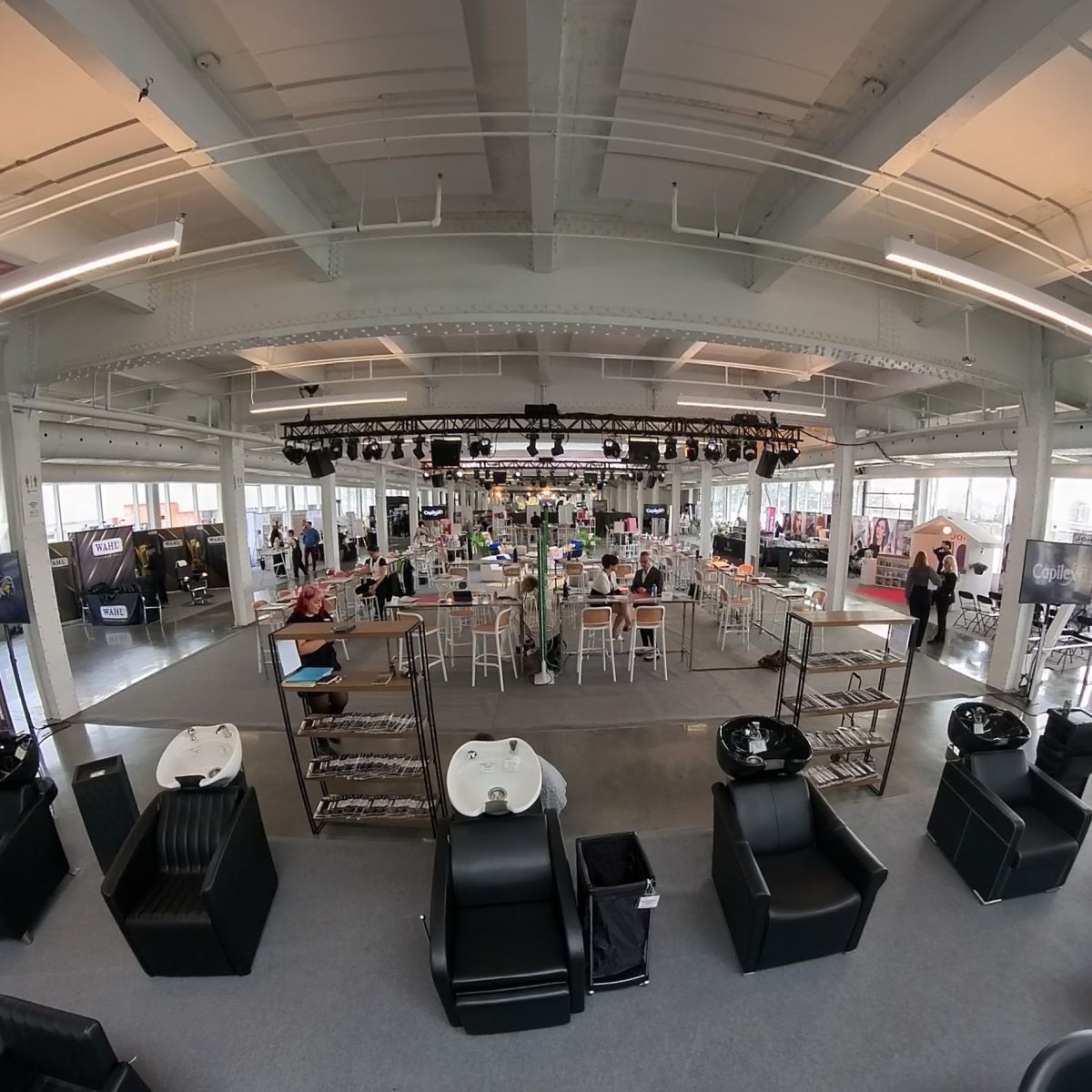

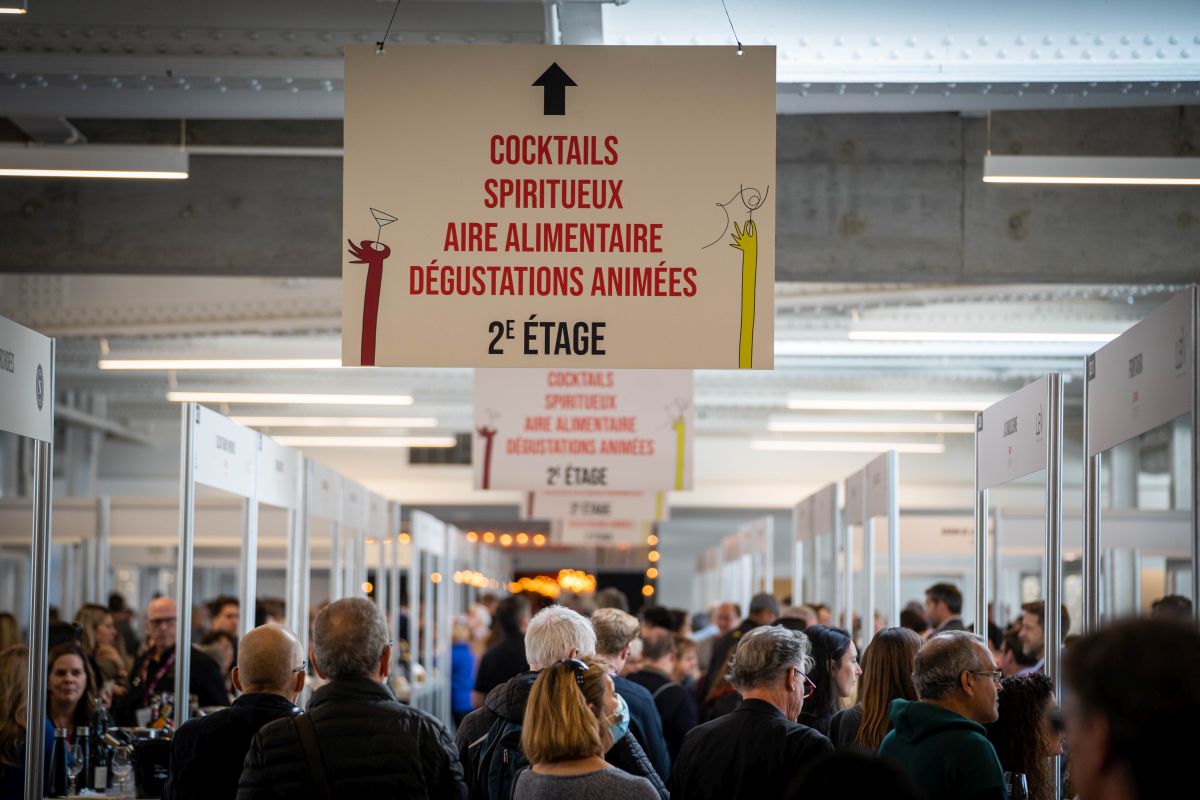

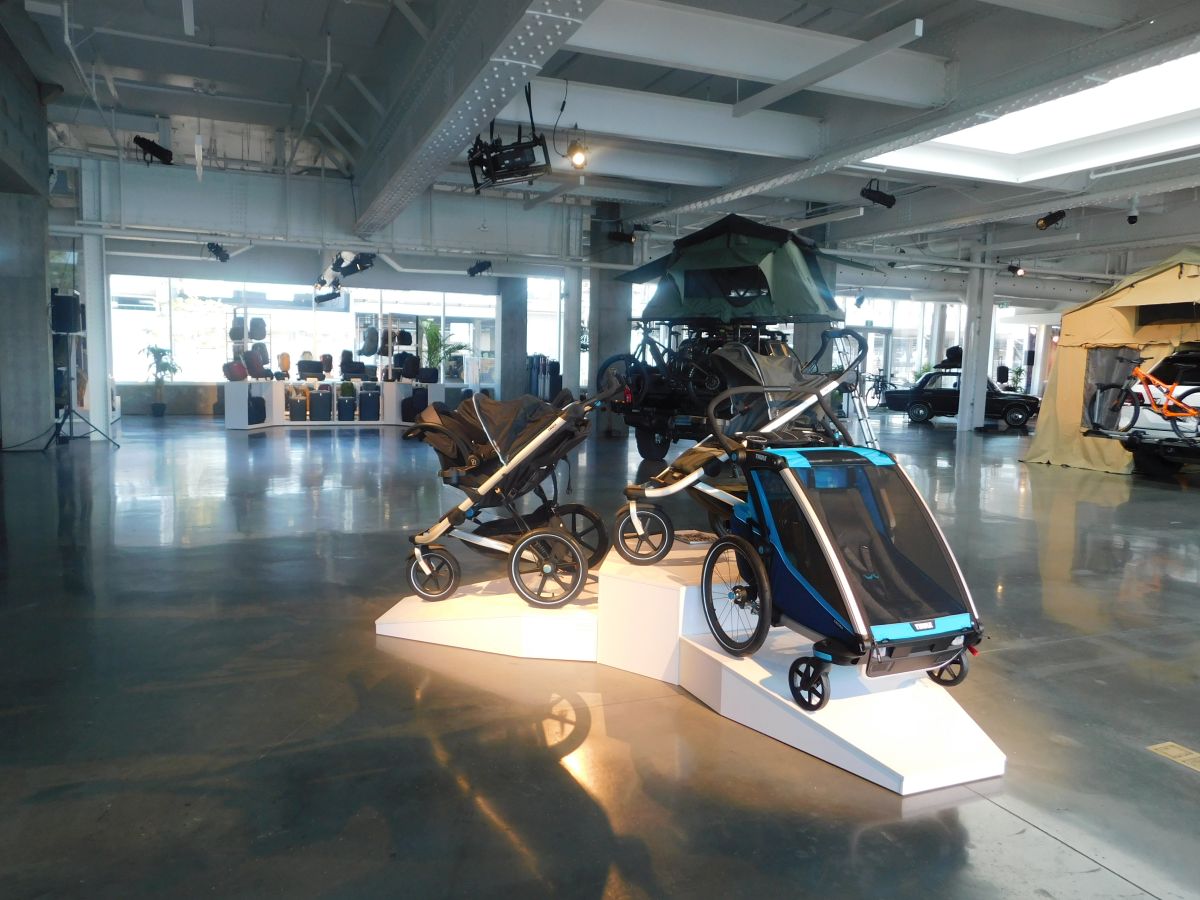

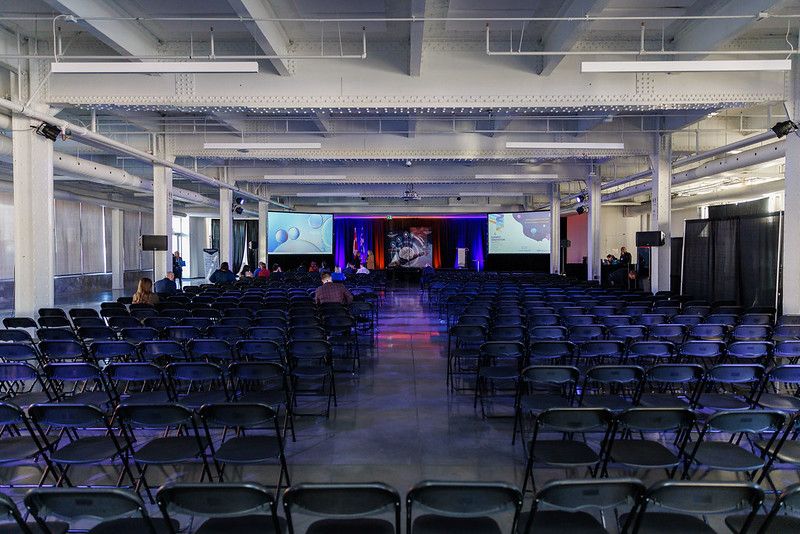

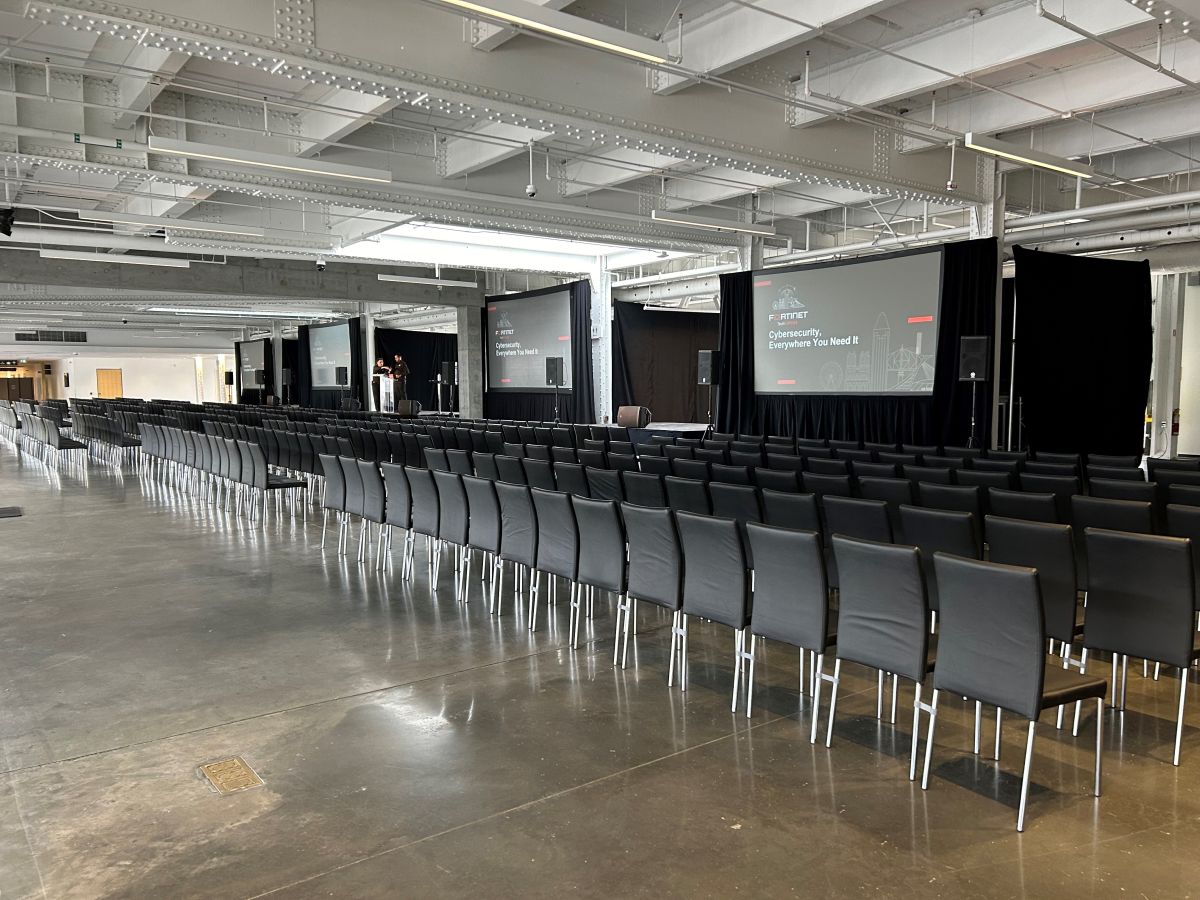

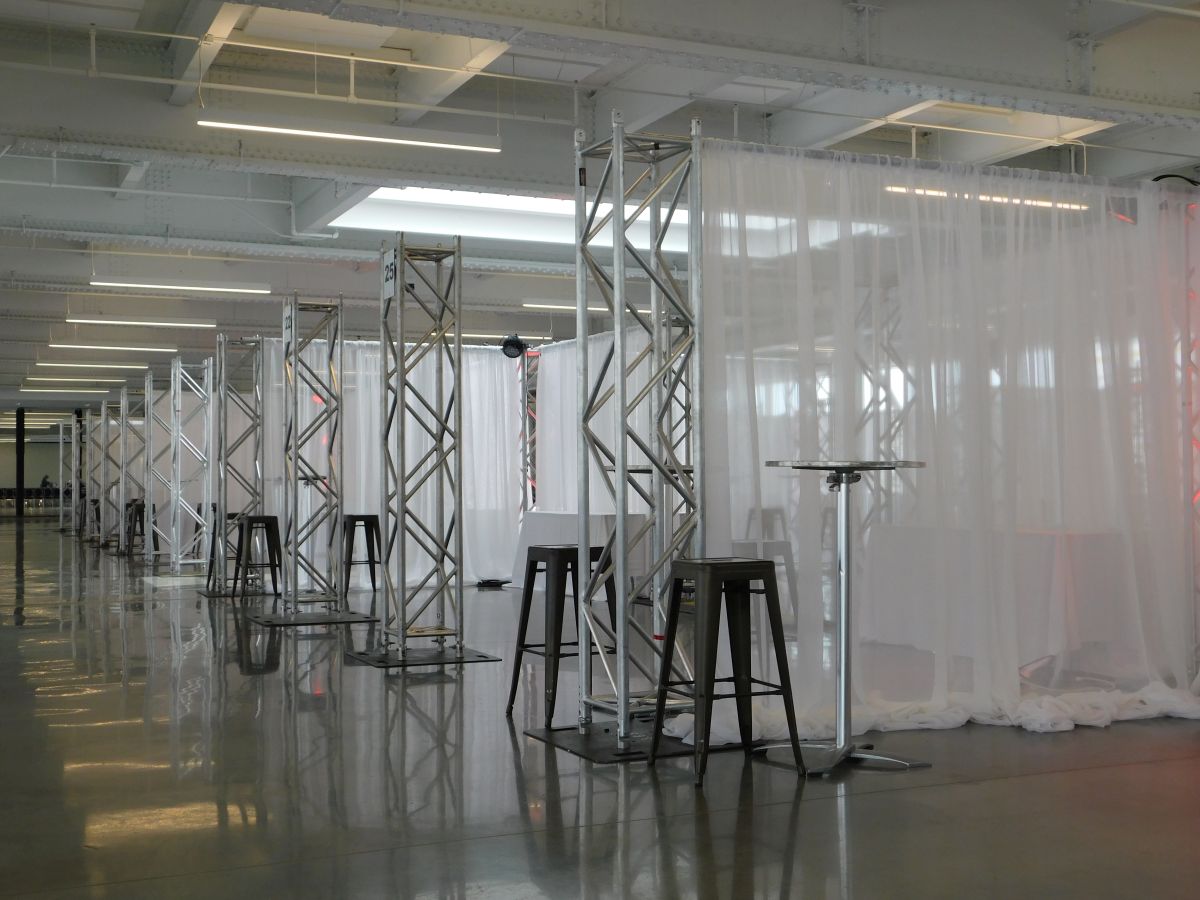

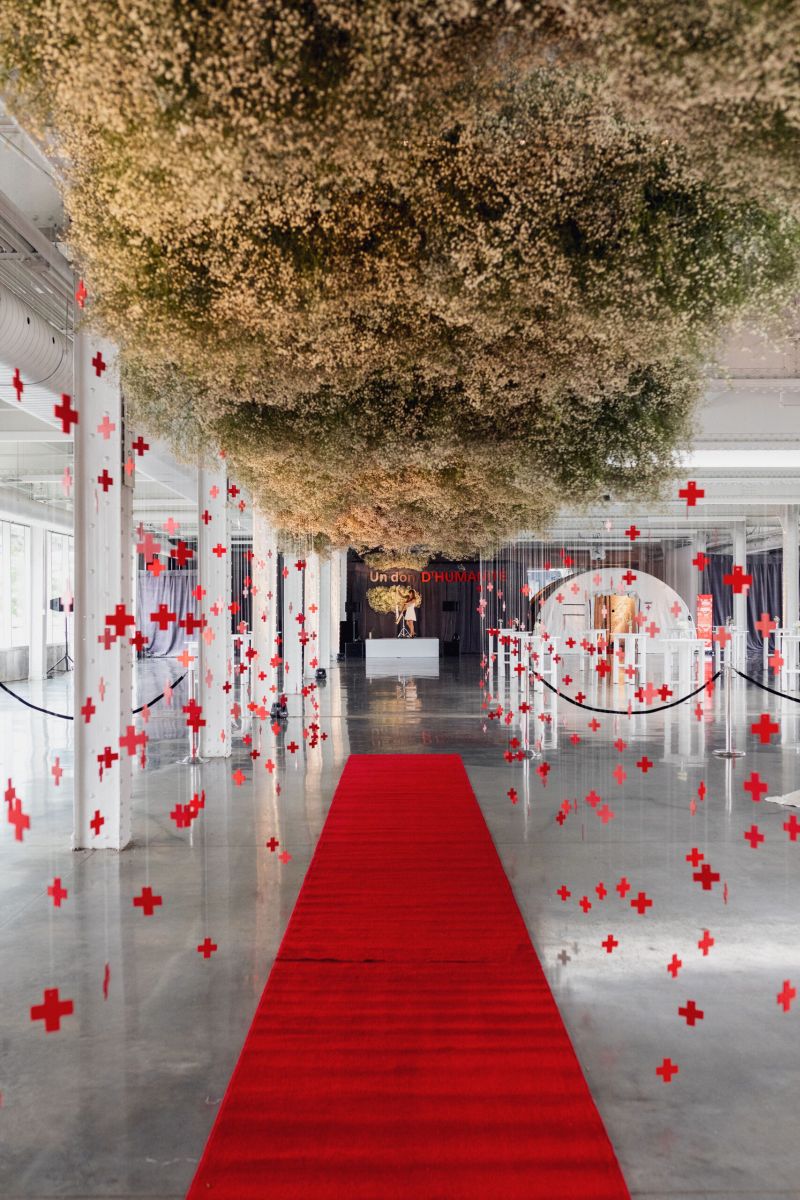

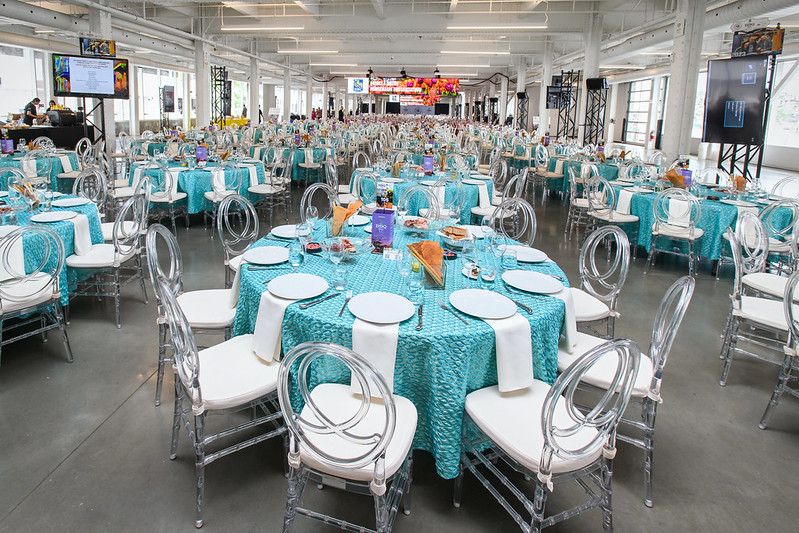

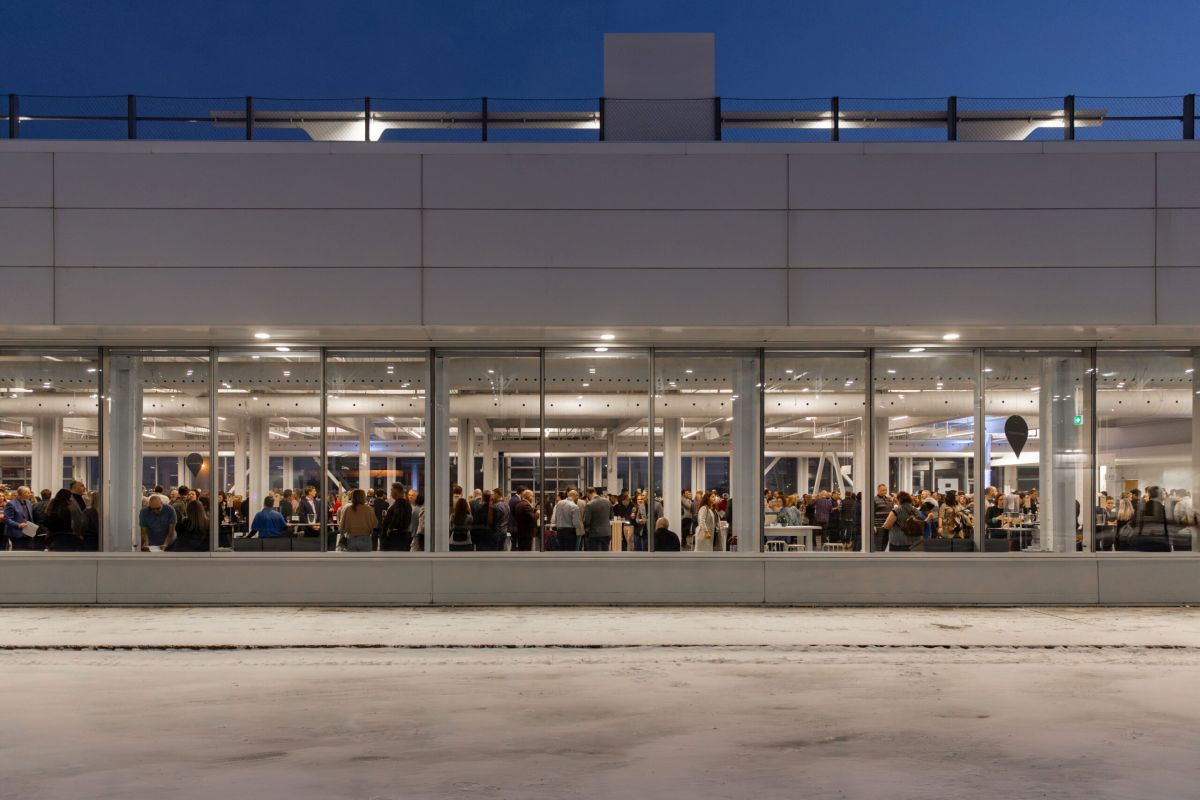

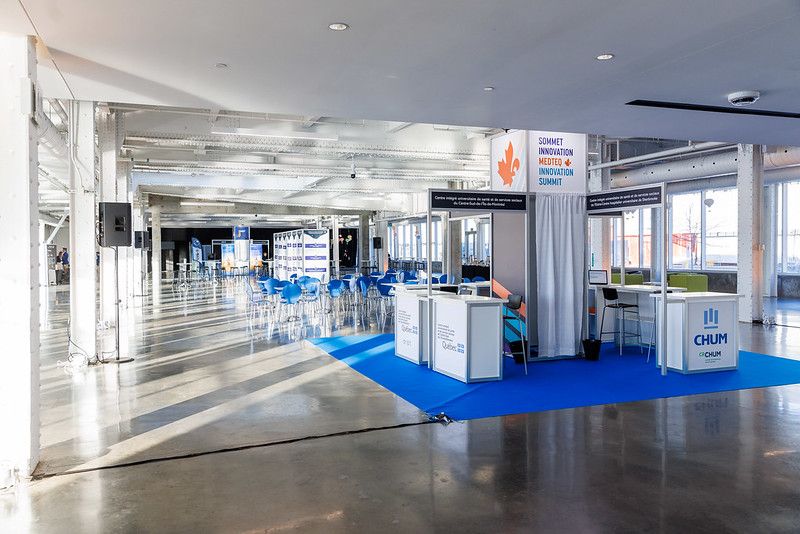

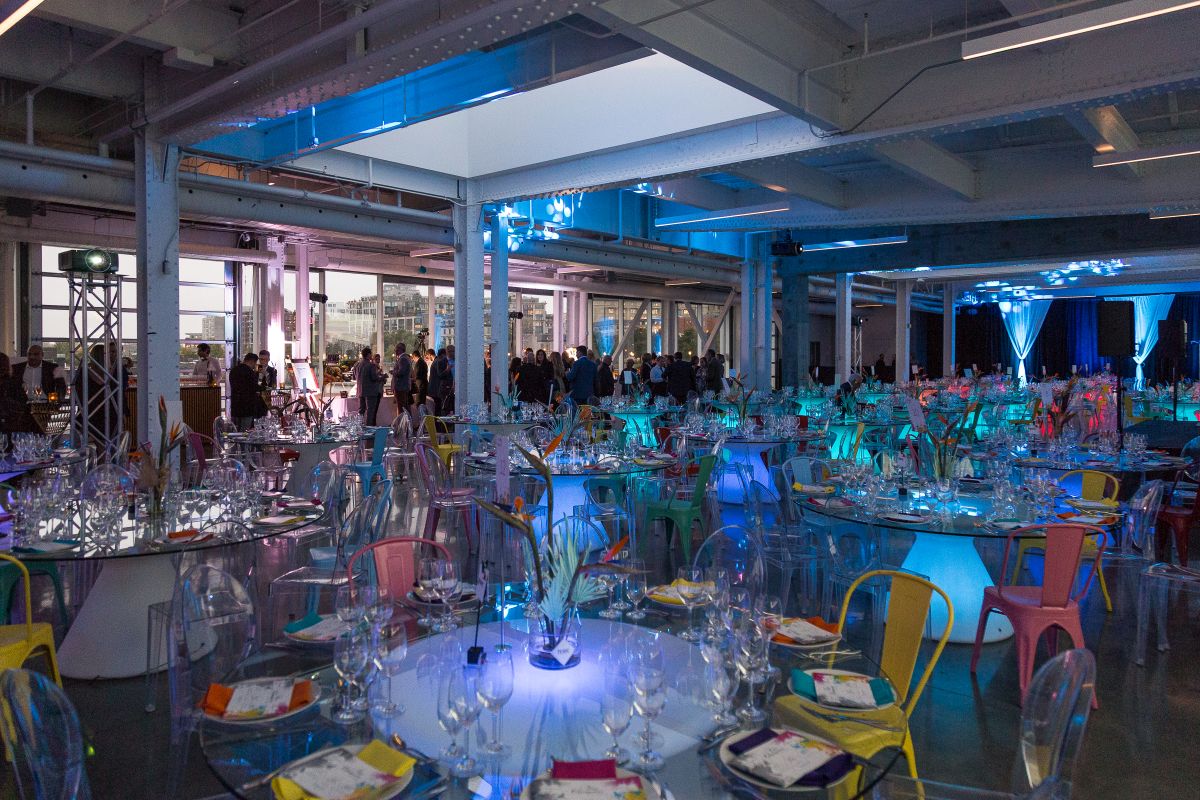

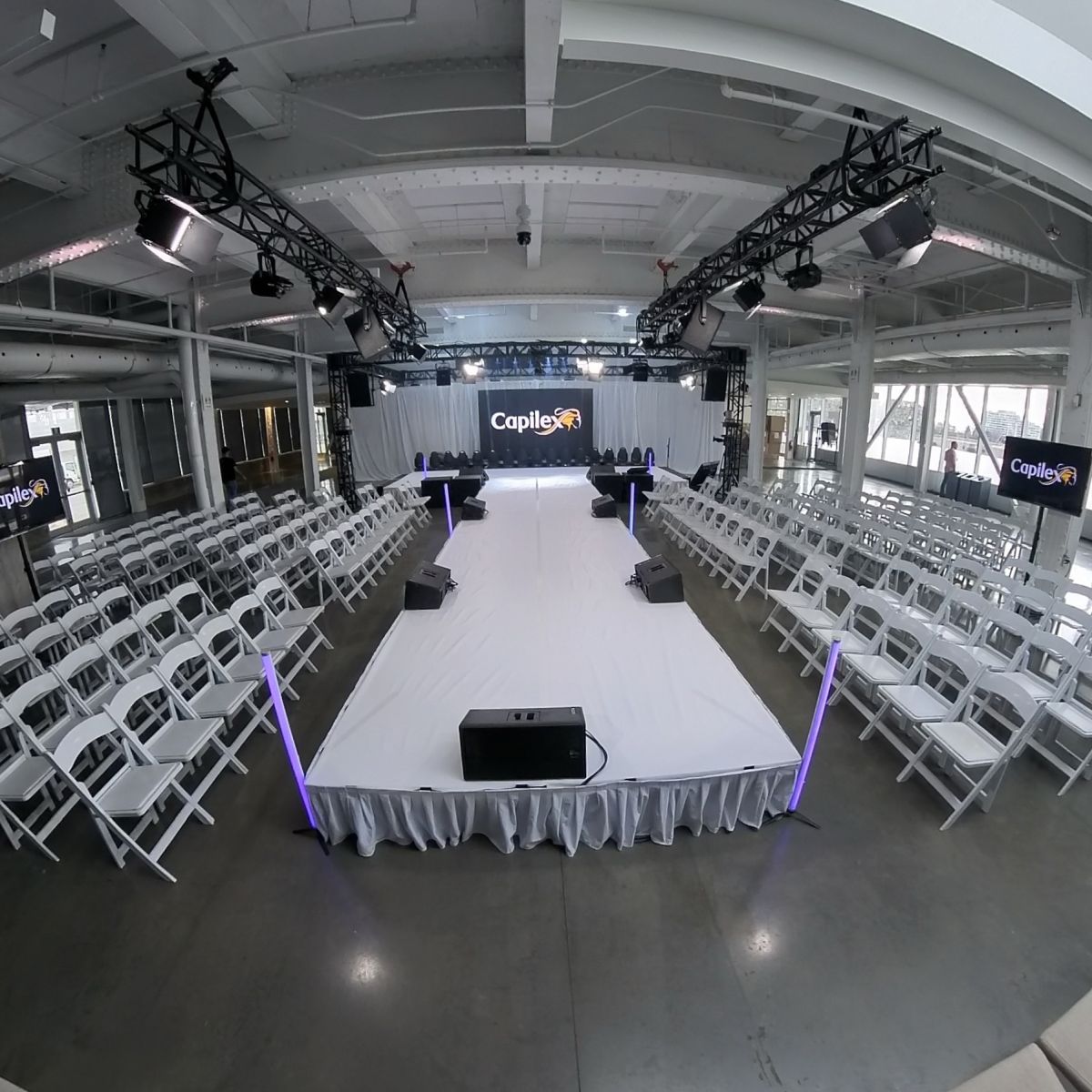

Photo gallery of past events
