Guidelines for lessees

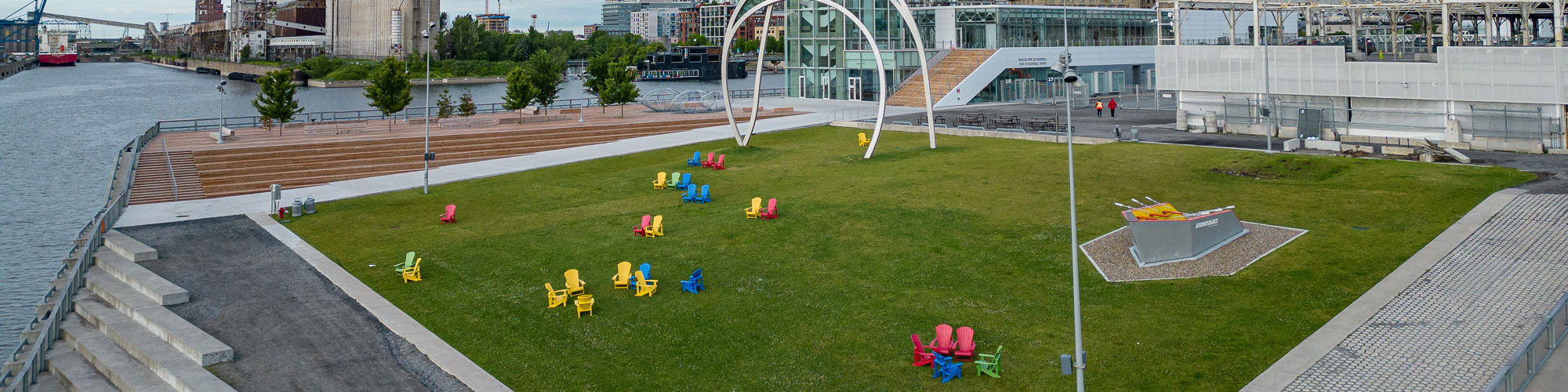

Commencement square

Room Capacity

Terminal 1 complet

Commencement Square, including the wooden terrace: 4,180 people
Wooden terrace: 890 people

Room layouts

DOWNLOAD room plan

DOWNLOAD room plan - CAD

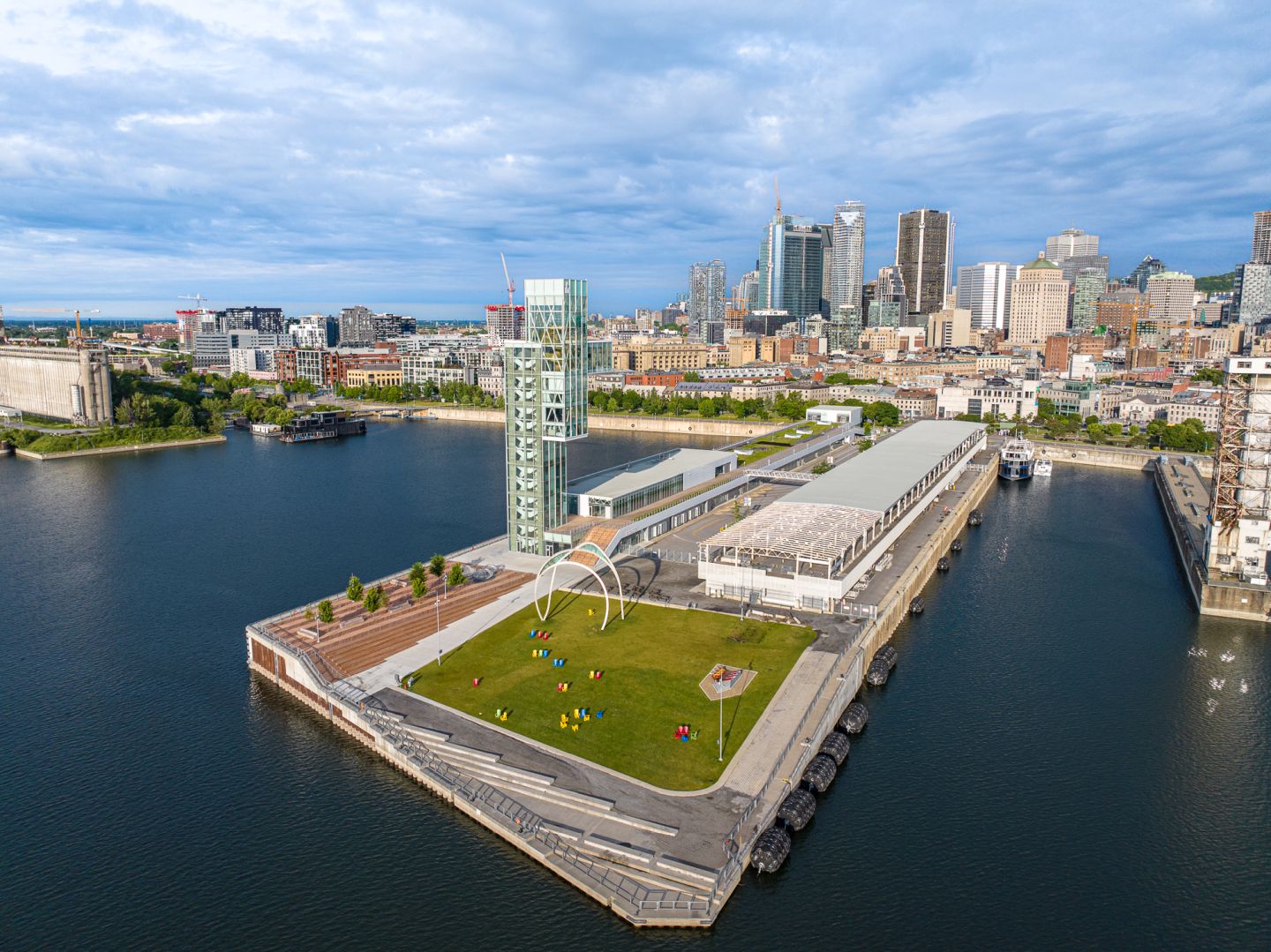

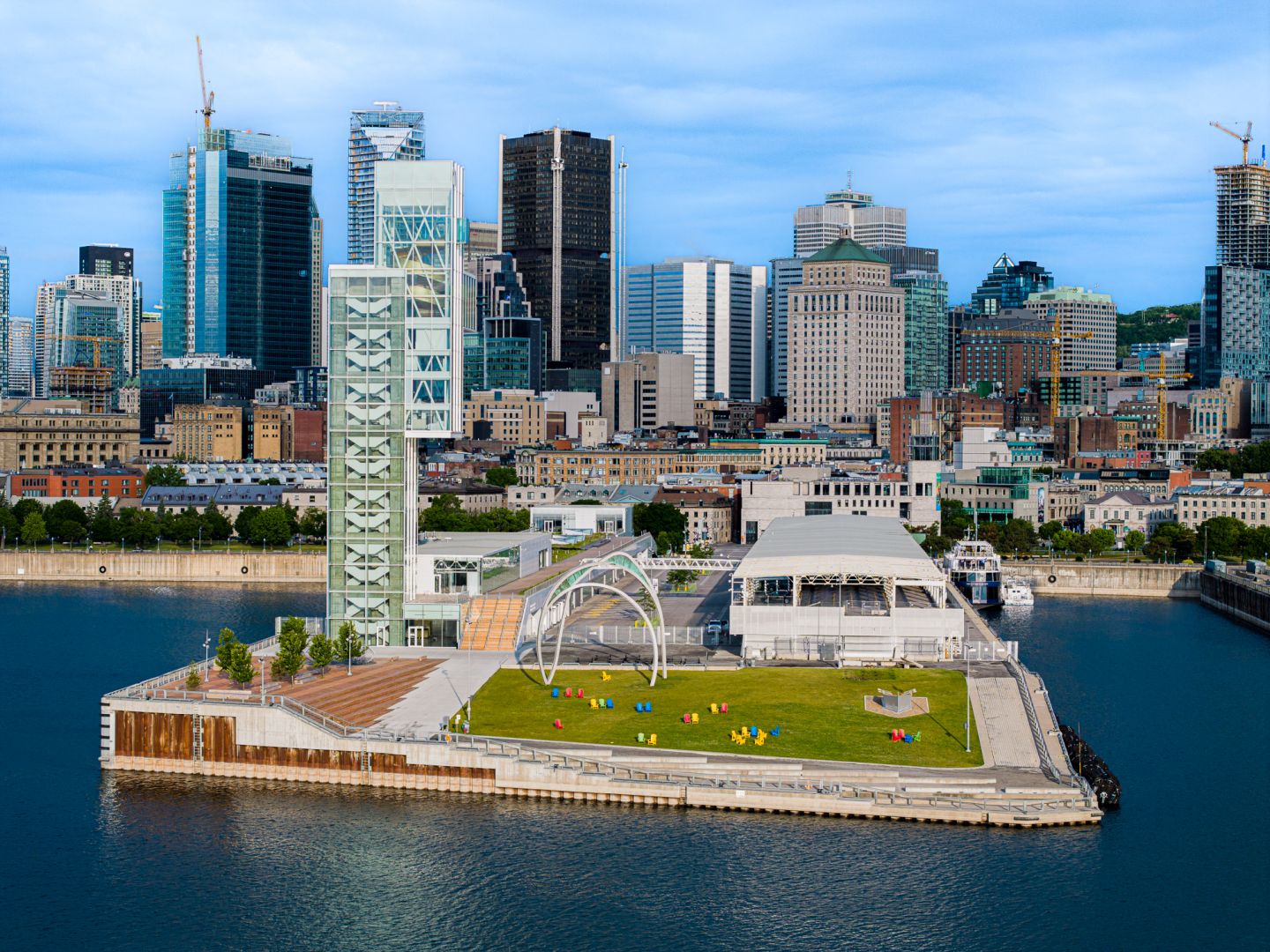

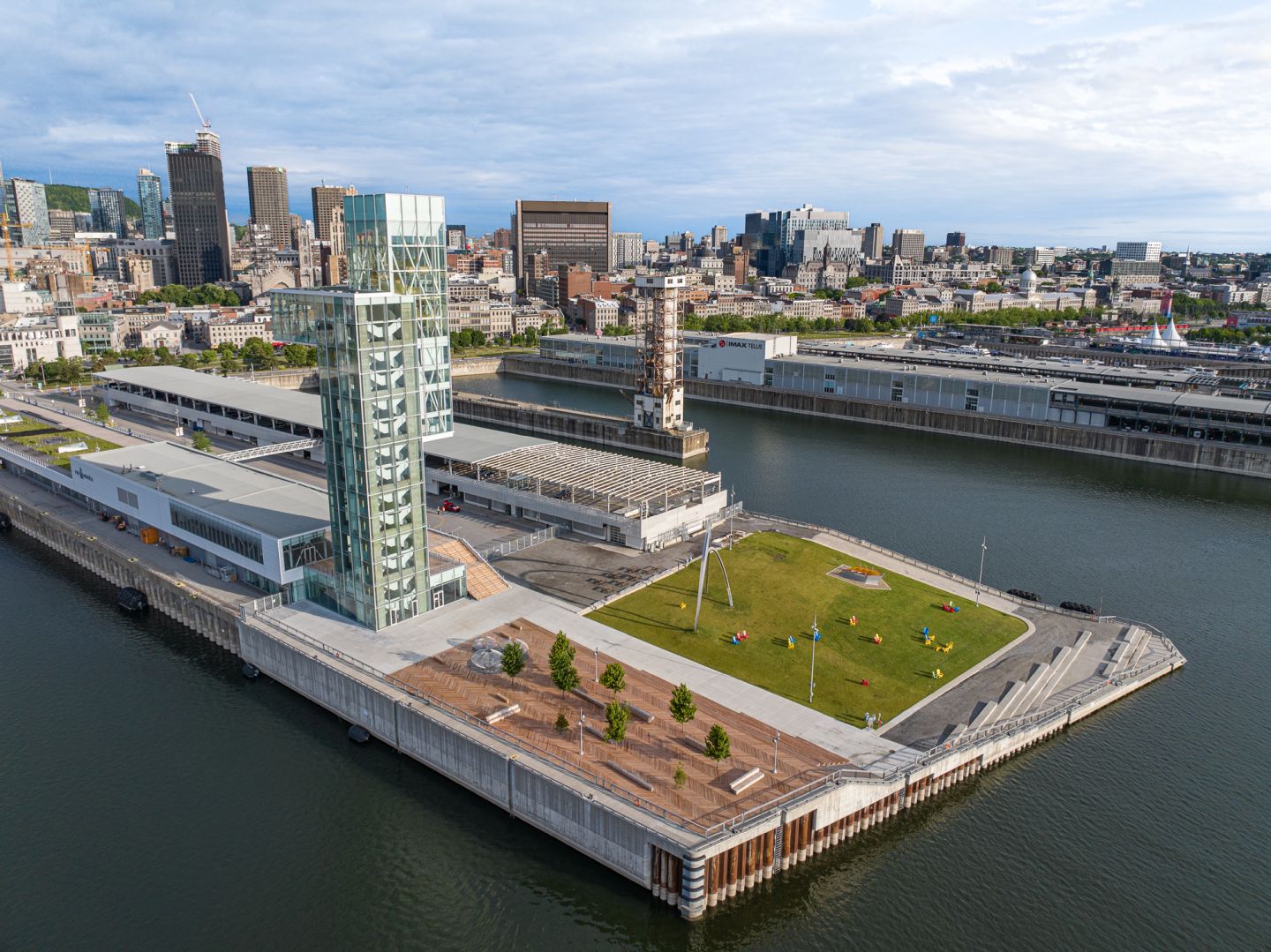

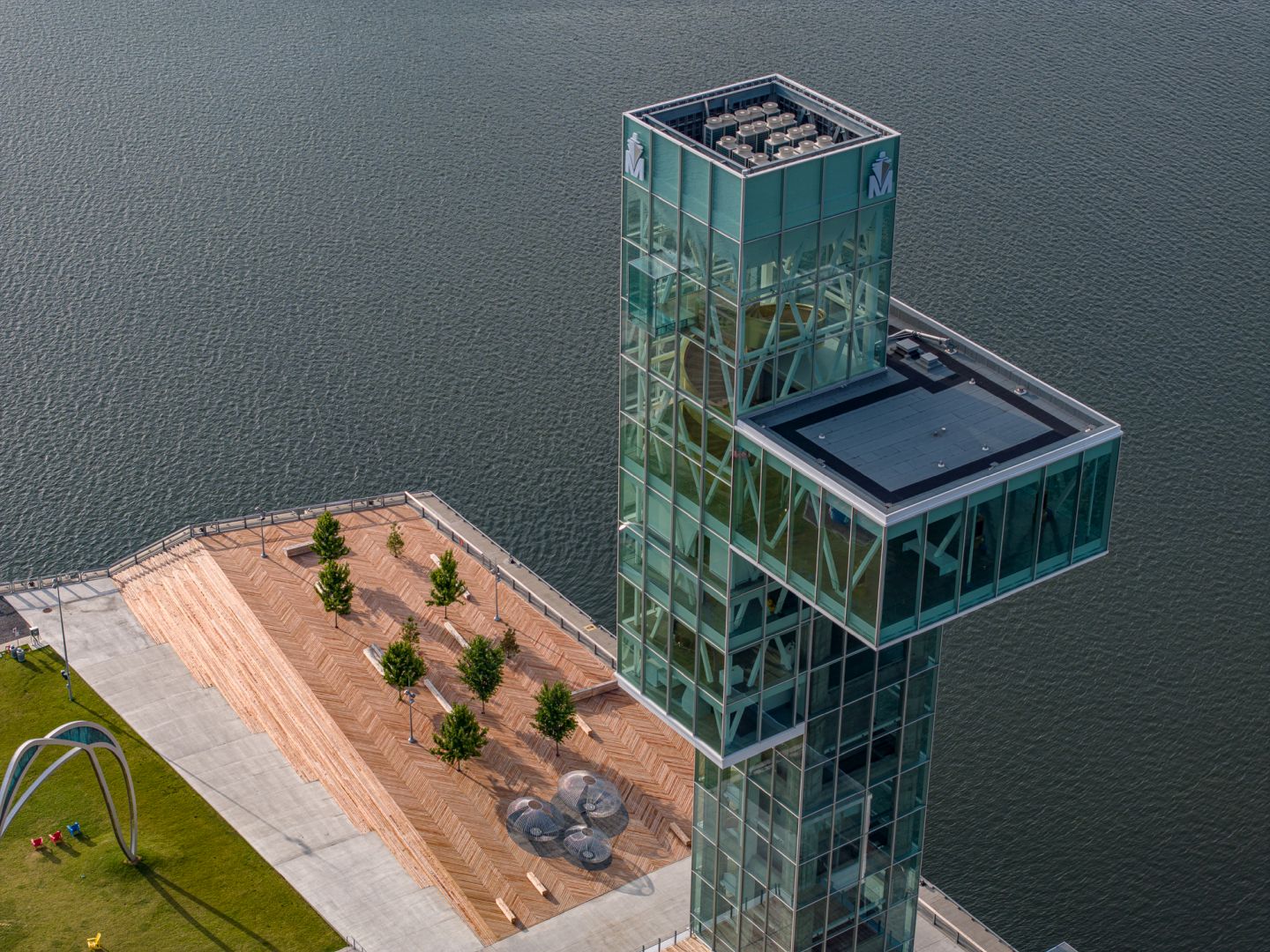

Image gallery

Access to rental spaces

Outdoor space on the ground floor

Outdoor space on the ground floor

It can be accessed from:

• Promenade d’iberville

• Main alley

Commencement square is open to the public during site opening hours.
It is possible to set up the full area or only the wooden terrace for private rental.
The grand quay will cordon off the area set up to be private with crowd fencing.


Central Alley plan: Areas and Access


DOWNLOAD central alley plan: areas and access

Delivery guide

  • Commencement square is an exclusively outdoor site. It is easily accessed by truck from the main alley.
  • A traffic corridor must remain unobstructed at all times.

Measurements

Commencement square

49 298 pi2 (4580 m2)

Grassy area

166’ x 188’ (50,8 m x 57,55 m)

Technical specifications

Electricity

20-amp electrical outlets available in the lampposts.

DOWNLOAD electrical plan

Cam-lock specs

1 200-amp cam-lock connection panel - 120/208 volts

  • Model: sta-205-30f-213-03
  • Series: 161025-2b
  • Voltage: 120/208
  • Cycle: 60
  • Phase: 3
  • Amperage: 200
  • Number of poles: 5

Furniture

  • 8 picnic tables
  • Adirondack chairs

The lessee is authorized to move the tables and chairs on condition that they are put back in place at the end of the event.

Technical equipment

Sound system for music (no microphone)

Compliance with Noise Nuisance Regulations

Water

Borne-fontaine disponible sur place. Une valve est disponible pour le branchement d’un boyau d’arrosage. Le Locataire doit fournir le un boyau d’arrosage d’une longueur suffisante de l’évier jusqu’au point de service.
Pour un débit d’eau plus important, le Grand Quai peut installer un boyau d’incendie à partir d’une borne d’incendie. (ex. : remplissage de baril d’eau pour l’installation d’un chapiteau).

Lighting

Système d’éclairage automatique avec lampadaire. Il est possible d’éteindre les lampadaires par un électricien. Le locataire doit aviser son coordonnateur avant l’événement.

Permanent installations

Works of art

  • Leurs effigies, Yann Pocreau

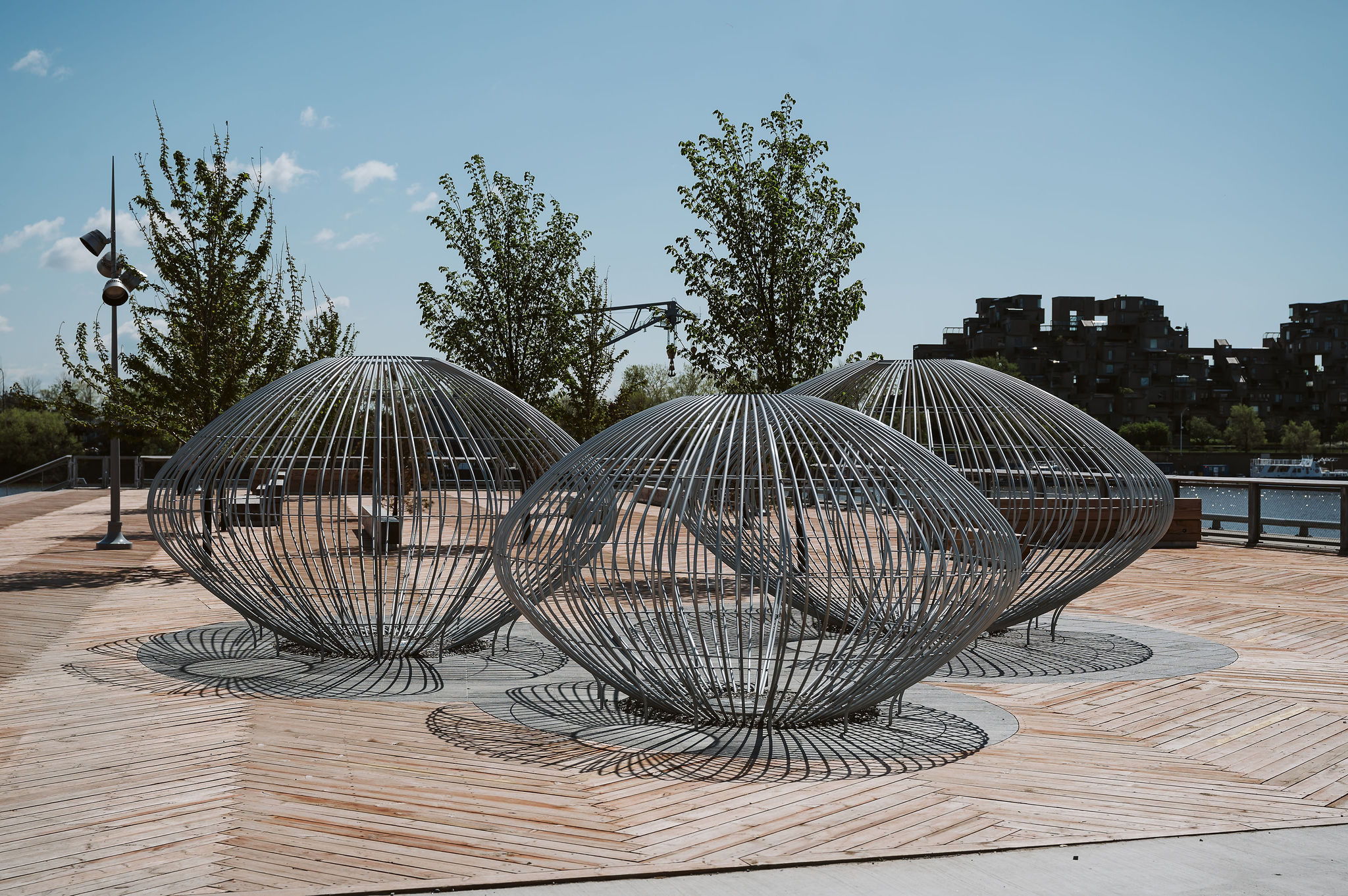

  • Hydrosphères, Linda Covit

Interactive installations

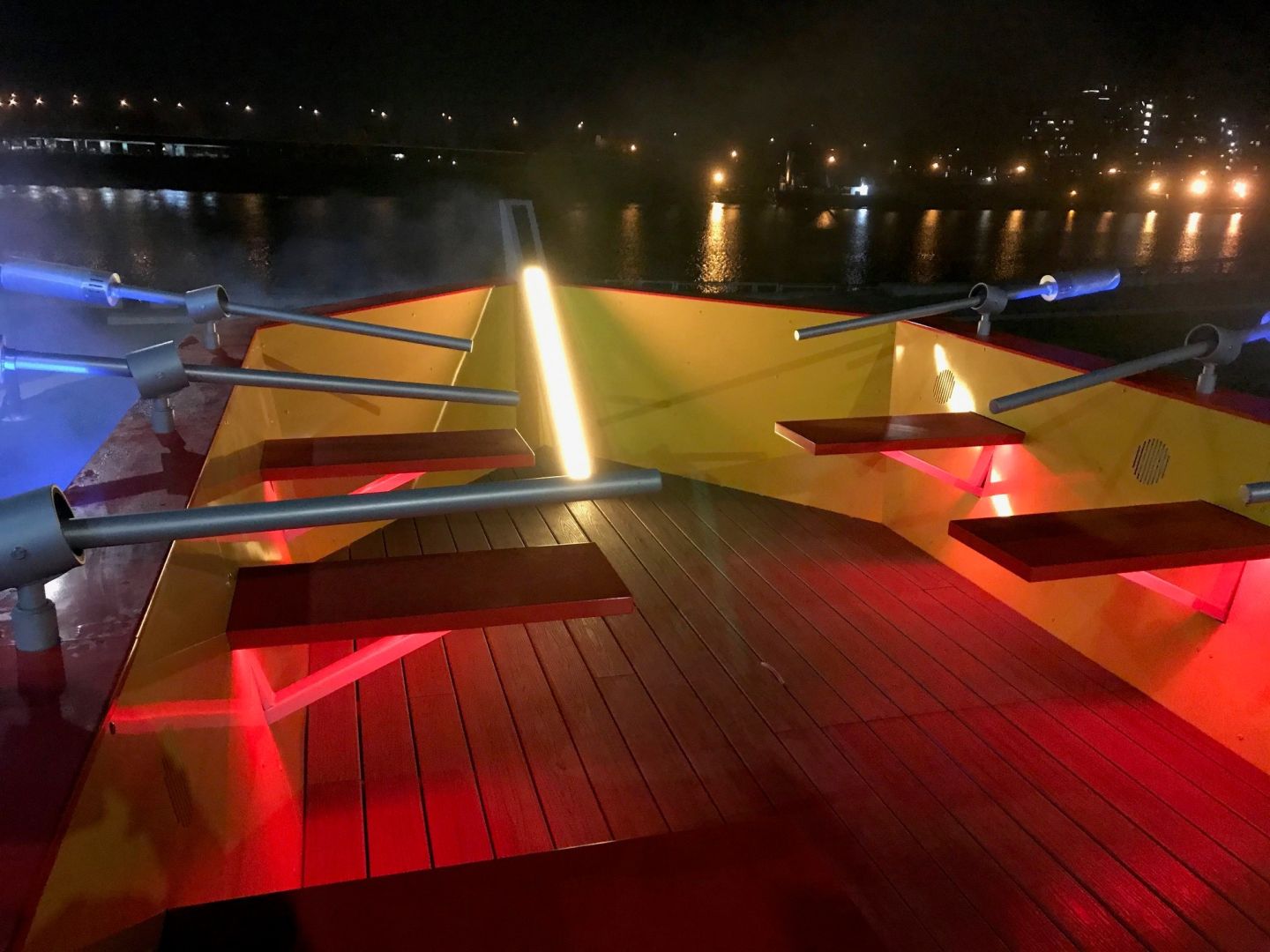

  • Rames lumineuses
  • No installation is permitted closer than 1.5 metres to the perimeter of leurs effigies by yann pocreau and hydrospheres by linda covit. The works of art must not be tampered with in any way.
  • Installation of a marquee style tent above hydrospheres is permissible.
  • No installation permitted over the rames lumineuses lighted rowing work (activation may be disabled during the event.

Spécifications importantes for installing marquees

• Regulations for installing big top or marquee style tents (wooden deck section)

  • No anchoring allowed
  • All 2,200-lb blocks are installed in the reinforced area. No planking required.
  • 3/4” plywood required on decking and under blocks.
  • Each 2200-lb block must span at least 3 beams under the decking.
  • 1,100-lb blocks must be installed on at least two rails.
  • 3/4” plywood required on decking and under blocks.
  • The path for the machinery used to place the blocks will be covered with two layers of plywood.
  • Weight of machinery is limited to 3,500 lbs and of transported blocks to 1,100 lbs in the unreinforced area.
  • Plan must be submitted to the mpa for approval.

• Regulations for installing marquees, structures or other items on the paved and lawn areas

  • Water barrels or concrete blocks are authorized.
  • 3/4” plywood required on decking and under blocks
  • No anchoring on lawn (ground irrigation system)
  • No anchoring in concrete
  • Plan to be submitted to the mpa for approval

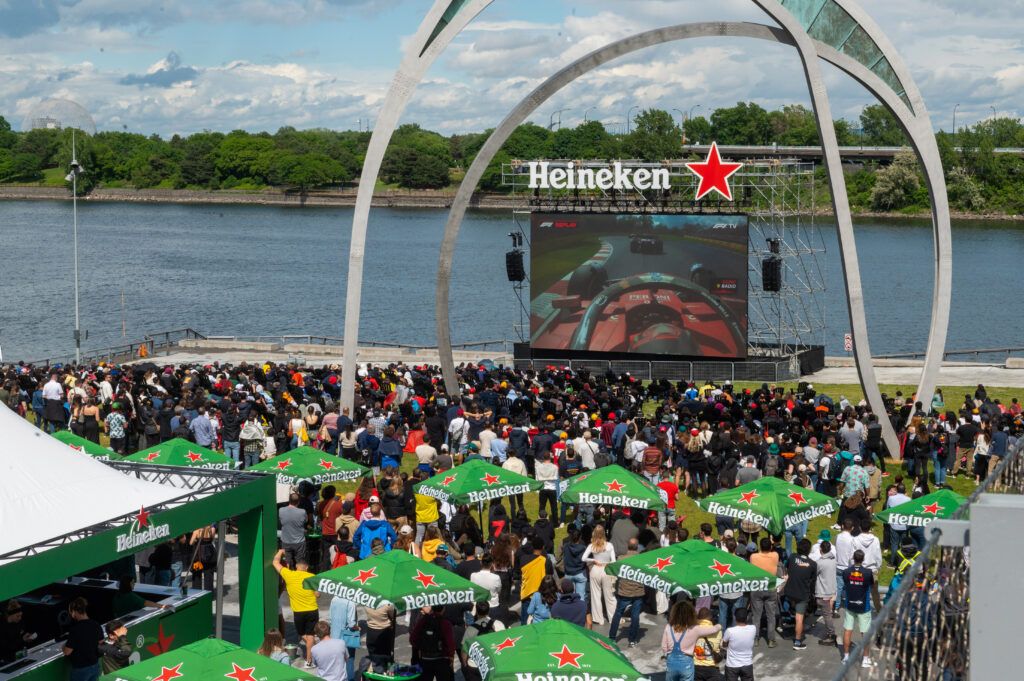

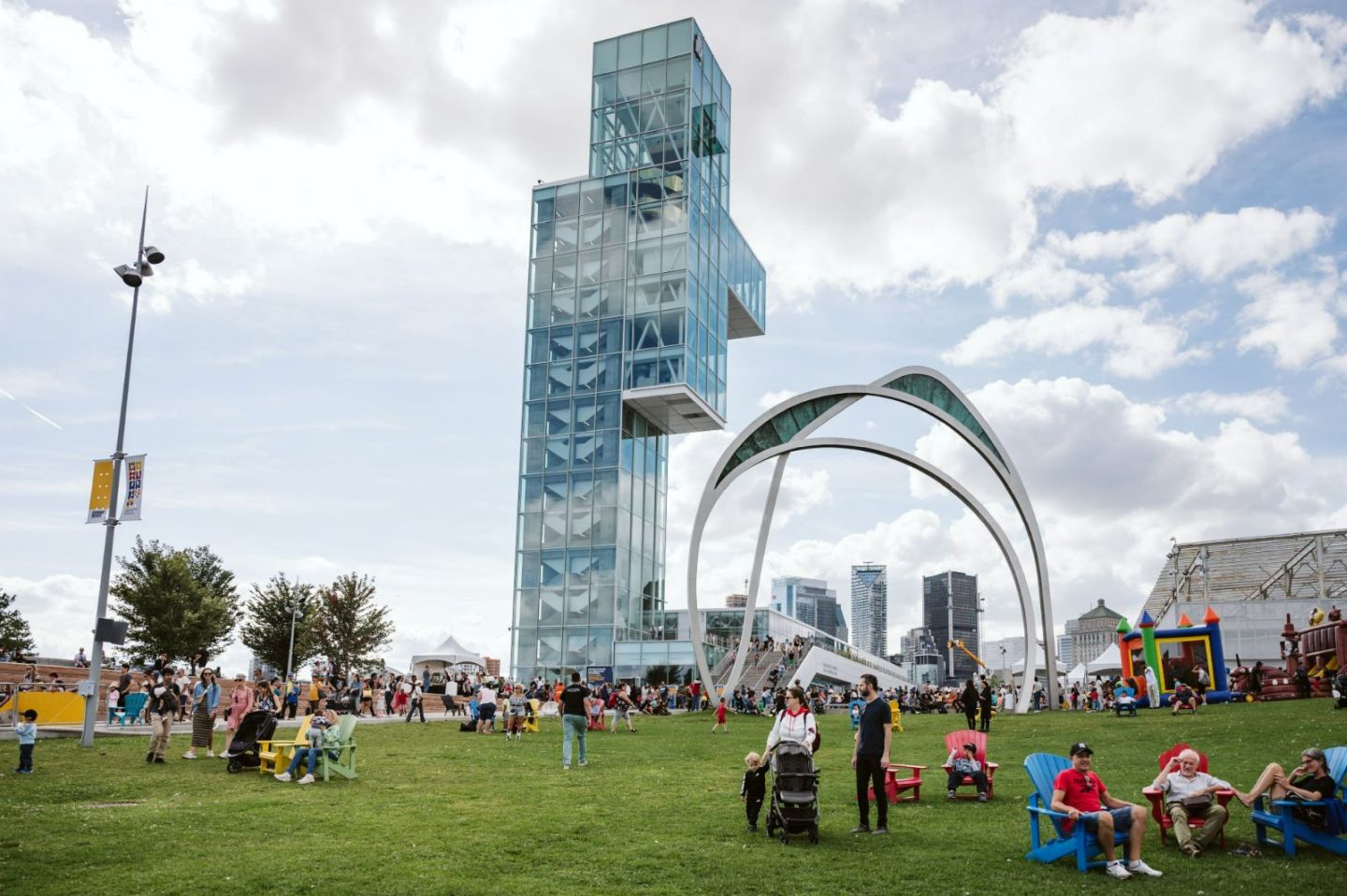

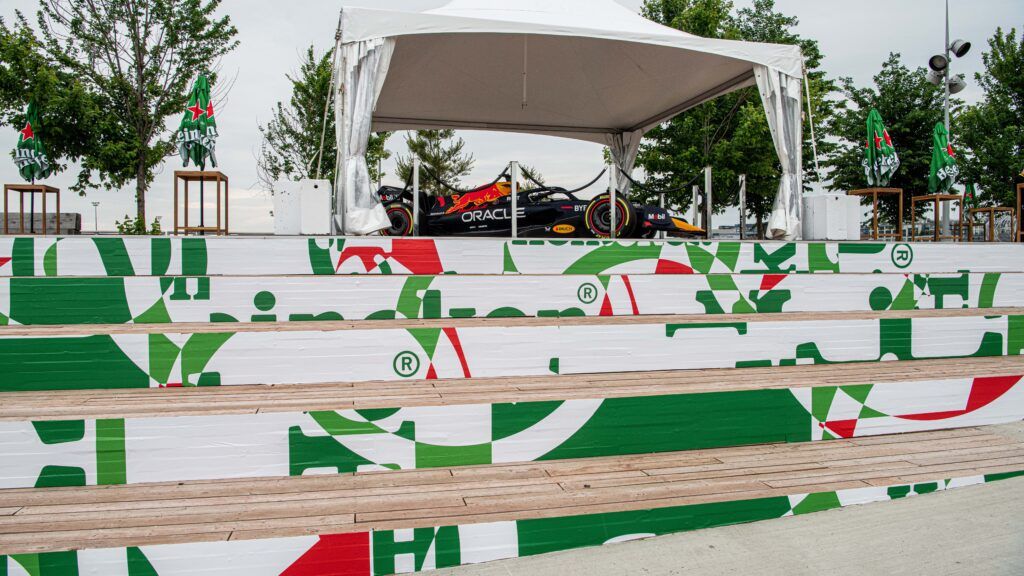

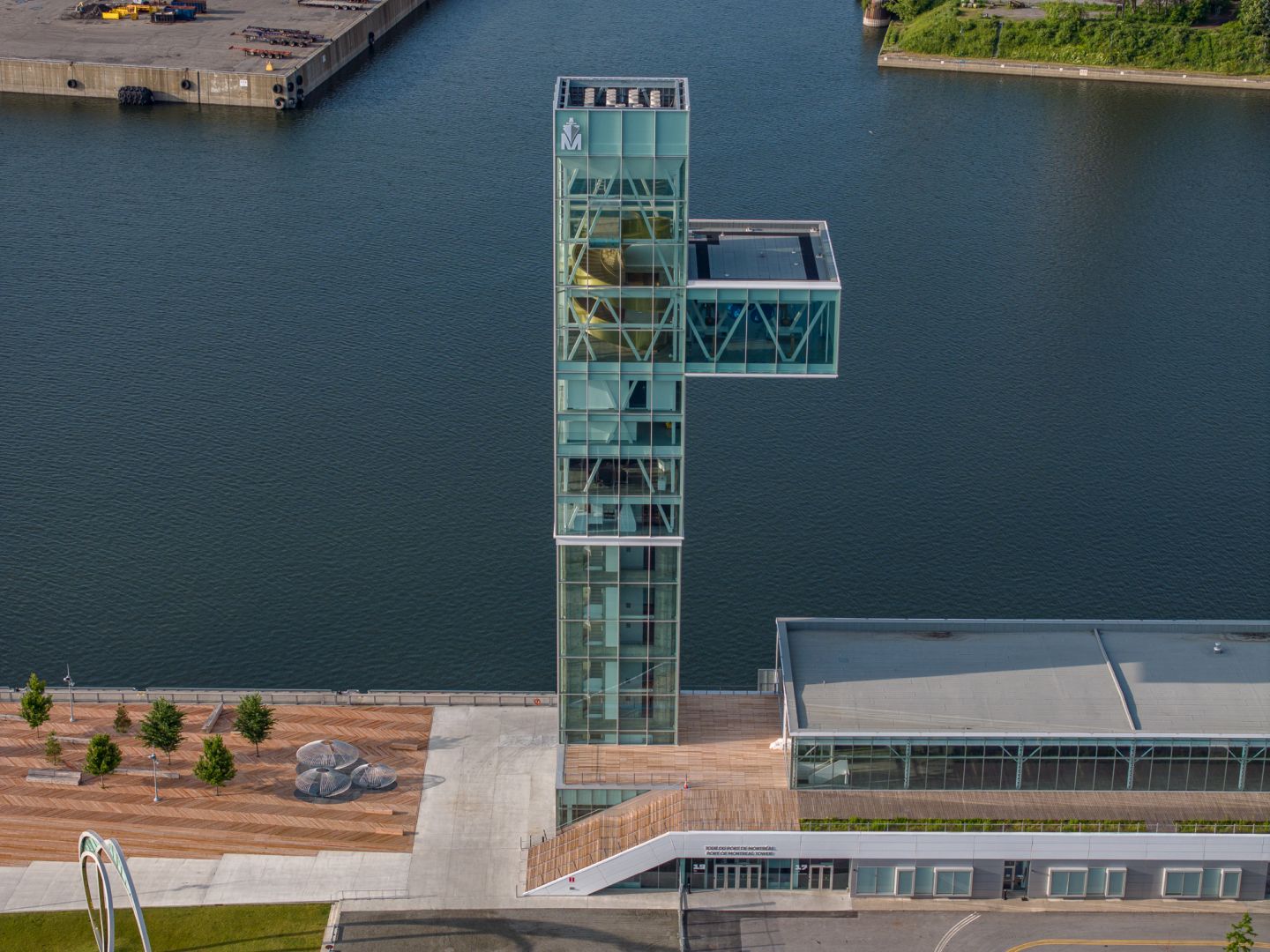

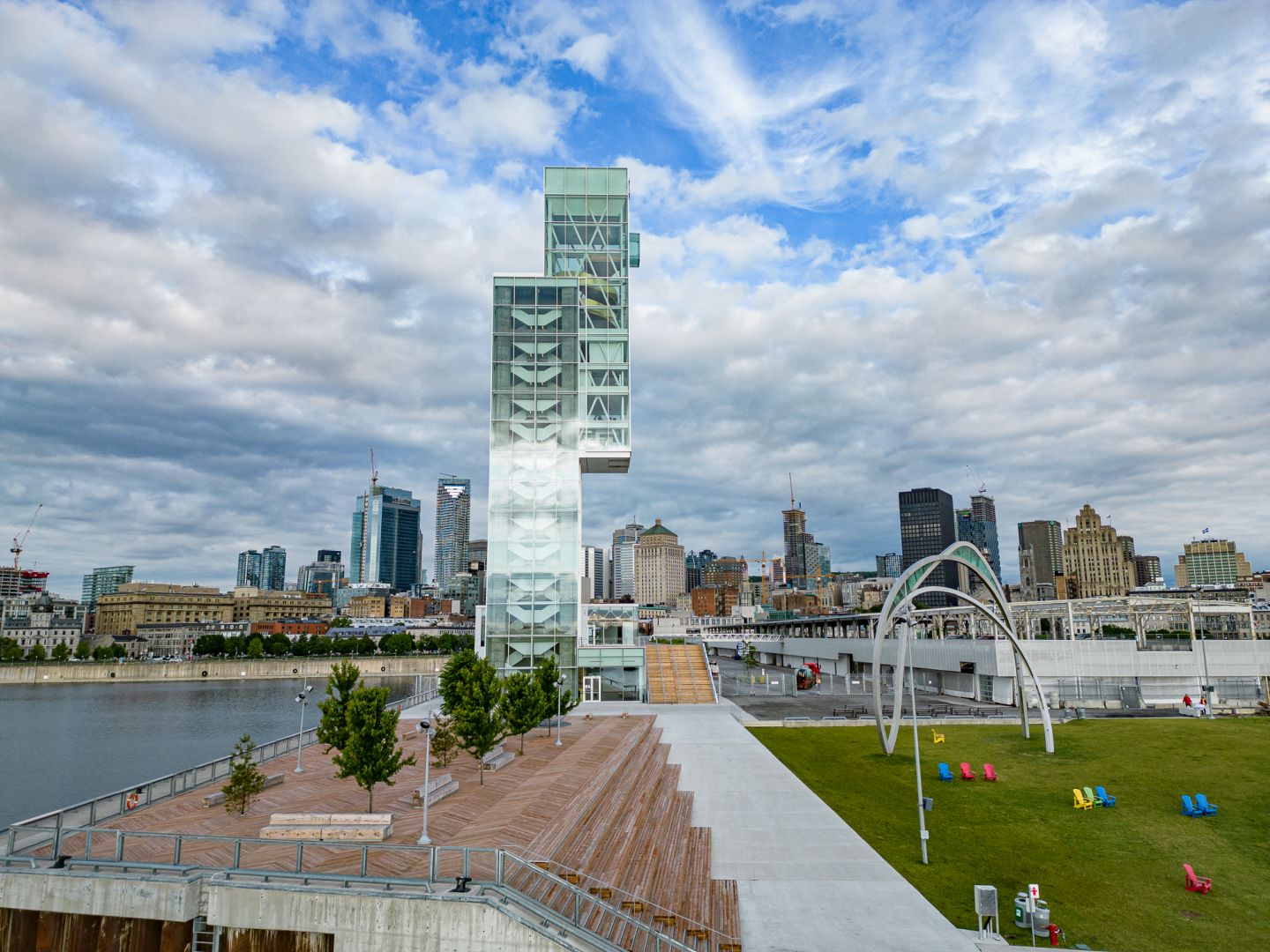

Photo gallery of past events
